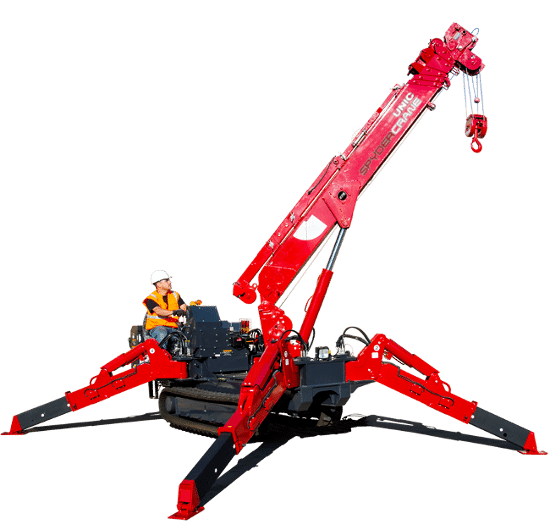

SPYDERCRANE 300 Series
The SPYDERCRANE 300 Series mini crane is the perfect lifting solution for today’s modern construction jobsites. Getting a bit bigger, the 300 Series has increased boom length and lifting capacity over the 200 Series, but maintains the technological advances and safety features that the SPYDERCRANE brand is known for.
While perfect for construction, the SPYDERCRANE 300 Series is only 52 inches wide when in travel mode allowing for travel through a standard double doorway. The hexagonal boom design provides increased rigidity and greatly reduces sway; which increases accuracy and overall safety during crane operations. Offering Zero Emissions power options, indoor construction or low ventilation areas are not a problem.
The SPYDERCRANE 300 Series mini cranes are a great option for construction sites needing to lift materials to a higher floor, set a stairway in a confined space, or that need a longer boom than the URW295.
 |
 |
|
|
|---|---|---|---|
| Model | SPYDERCRANE URW306(T) | SPYDERCRANE URW306 | SPYDERCRANE URW376 |
| Max Capacity | 5,800 lbs @ 9.0′ | 5,800 lbs @ 9.0′ | 6,680 lbs @ 8.2′ |
| Boom Length | 47′ 10″ | 47′ 10″ | 47′ 10″ |
| Approximate Tip Height | 52′ ft | 52′ ft | 52′ ft |
| Wire Rope on Drum | ~250 ft | ~250 ft | ~250 ft |
| Travel Dimensions (W x H x L) | 51″ x 71″ x 171″ | 51″ x 71″ x 171″ | 51″ x 71″ x 171″ |
| Approximate Foot Print (Max) | 15.11 ft x 15.10ft | 15.11 ft x 15.10ft | 15.11 ft x 15.10ft |
| Approximate Foot Print (Min) | 11.9 ft x 13.2 ft | 11.9 ft x 13.2 ft | 11.9 ft x 13.2 ft |
| Weight of Crane | ~8,700 lbs | ~8,700 lbs | ~8,700 lbs |
|
|
|
|
|---|---|---|---|
| Model | SPYDERCRANE URW306(T) | SPYDERCRANE URW306 | SPYDERCRANE URW376 |
| Diesel | Standard | Standard | Standard |
| Electric with Diesel | Optional | Optional | Optional |
| 110 Battery Power/Diesel | Optional | Optional | Optional |
|
|
|
|
|---|---|---|---|
| Model | SPYDERCRANE URW306(T) | SPYDERCRANE URW306 | SPYDERCRANE URW376 |
| Single Part Line | Optional | Standard | Standard |
| 4-Part Line | Standard | Standard | Standard |
| Jib with Searcher Hook | Standard | Standard | |
| Load Moment Indicator with Electronic Display |
Standard | Standard | |
| Patented Overturn Protection | Standard | ||
| Automatic Throttle Advancement | Standard | Standard | |
| On-board Self Diagnostic Computer System |
Standard | Standard | |
| Full Function Wireless Remote | Standard | Standard | |
| Automatic Hook Store | Standard | Standard | Standard |
|
|
|
|
|---|---|---|---|
| Model | SPYDERCRANE URW306(T) | SPYDERCRANE URW306 | SPYDERCRANE URW376 |
| Attachable Work Platform | Optional | Optional | Optional |
| Non-marking Tracks | Optional | Optional | Optional |
| SPYDERWEB Glass Manipulator | Optional | Optional | Optional |
| Woods Pwr Grip Hanging Cups | Optional | Optional | Optional |
| Exhaust Scrubber/ Catalytic Converter |
Optional | Optional | Optional |
| Arctic Kit / 12V & 110V Combo | Optional | Optional | Optional |
| Crane Lube Kit (Lube-a-Boom) | Optional | Optional | Optional |
| Fire Extinguisher | Optional | Optional | Optional |
| Spare Parts Kit (2-Year Supply) | Optional | Optional | Optional |
| Track Mats 3’ x 6’ (Set of 3) | Optional | Optional | Optional |
| Outrigger Pads | Optional | Optional | Optional |
| Trailer & Accessory Kit | Optional | Optional | Optional |
| Rigging | Optional | Optional | Optional |
| Spare Key (Pair) | Optional | Optional | Optional |
| Steel Pallet w/Fork Pockets | Optional | Optional | Optional |
| Strobe Light | Optional | Optional | Optional |
| Weatherproof Cover | Optional | Optional | Optional |
|
|
|
|
|---|---|---|---|
| Model | SPYDERCRANE URW306(T) | SPYDERCRANE URW306 | SPYDERCRANE URW376 |
| Download Spec Sheets | SPYDERCRANE URW306(T) | SPYDERCRANE URW306 | SPYDERCRANE URW376 |
Compare All Models or Contact Us for more Information
