Max 8,880 lbs · Tip height 57.4 ft (w/ jib) · Fits through a double door

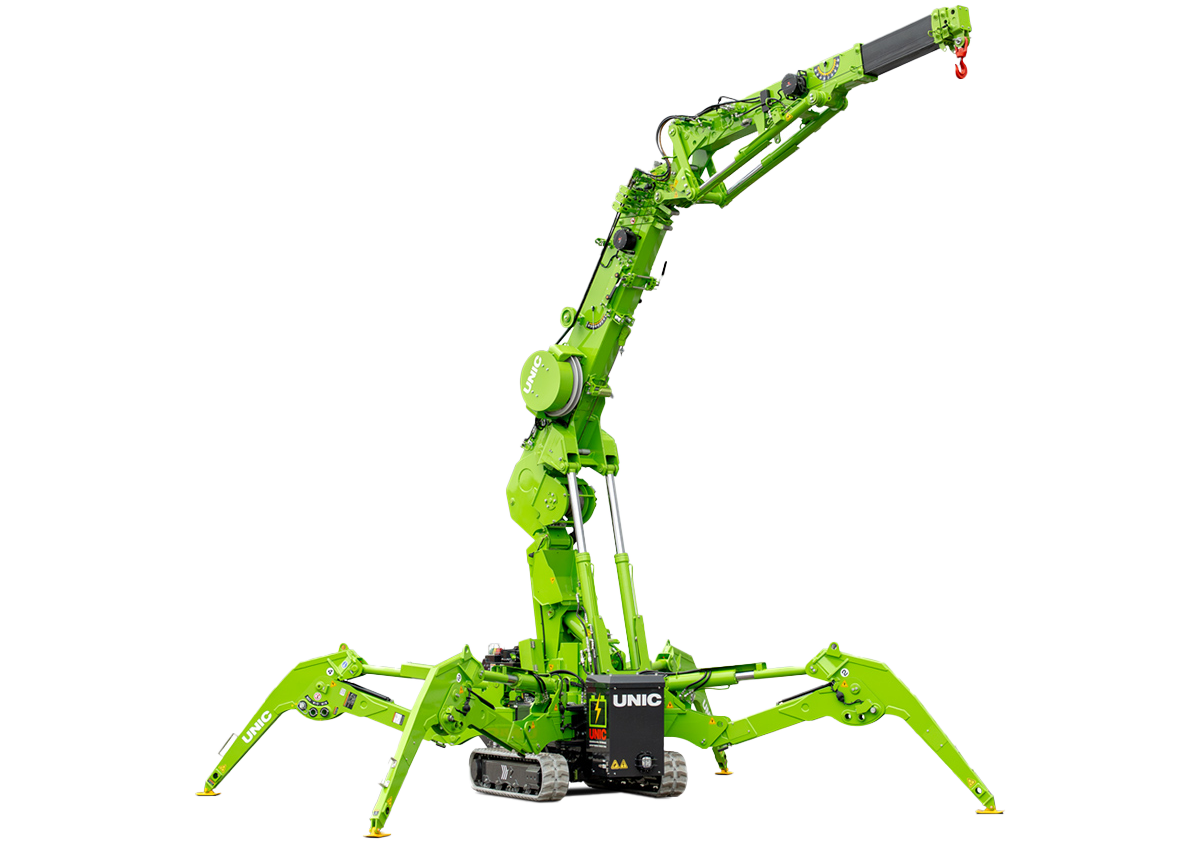

The SPYDERCRANE UM445 is a powerful, versatile mini crane designed to deliver high lifting capacity while maintaining a compact footprint for tight job sites. With a maximum capacity of 8,880 lbs and a hydraulic five-section boom reaching up to 30 feet, the UM445 is built for demanding applications that require both strength and precision. Its luffing jib extends tip height to over 57 feet, allowing operators to tackle complex lifts with ease.
Engineered for efficiency and control, the UM445 features an integrated computer controller, load moment indicator, and a full-function wireless remote with situational awareness display. Its selectable-length, variable-geometry outriggers provide excellent stability in confined spaces, while smooth, infinitely variable controls ensure precise operation. Designed for both indoor and outdoor use, the UM445 combines robust performance with advanced safety features.
| Specification | UM445 |
|---|---|
| Max Capacity | 8,880 lbs (4-part) |
| Boom Length | 9.5′ – 30′ |
| Approximate Tip Height | 39.4′ (boom) / 57.4′ (with jib) |
| Wire Rope on Drum | 194′ of 8mm |
| Travel Dimensions (W × H × L) | 43″ × 76″ × 123″ |
| Approximate Footprint (Max) | 14.9′ × 15′ |
| Approximate Footprint (Min) | 11′ × 10.6′ |
| Weight of Crane | 8,443 lbs |
Specifications subject to change. Download the official spec sheet for the most current data.
| Power Configuration | UM445 |
|---|---|
| Lithium-Ion Battery Array | Standard |
The SPYDERCRANE UM445 runs on a standard lithium-ion battery array for zero emissions for indoor and outdoor use. The crane operates on battery power and can plug into a standard 110 Volt wall outlet to charge and maintain the battery while operating.
| UM445 | |
|---|---|
| Single Part Line | Standard |
| 4-Part Line | Standard |
| Variable Geometry Outriggers | Standard |
| Automatic Throttle Advancement | Standard |
| On-board Self Diagnostic Computer System | Standard |
| Full Function Wireless Remote | Standard |
| Automatic Hook Store | Standard |
Click any feature below to watch a short video and learn how it works.
| UM445 | |
|---|---|
| Non-marking Tracks | Optional |
| Arctic Kit / 12V & 110V Combo | Optional |
| Crane Lube Kit (Lube-a-Boom) | Optional |
| Fire Extinguisher | Optional |
| Spare Parts Kit (2-Year Supply) | Optional |
| Track Mats 3' × 6' (Set of 3) | Optional |
| Outrigger Pads | Optional |
| Trailer & Accessory Kit | Optional |
| Rigging | Optional |
| Spare Key (Pair) | Optional |
| Steel Pallet w/Fork Pockets | Optional |
| Strobe Light | Optional |
| Weatherproof Cover | Optional |
SPYDERCRANE® operator training with hands-on instruction from dedicated trainers.
