Max 13,300 lbs · Boom 63 ft · Tip height 81 ft

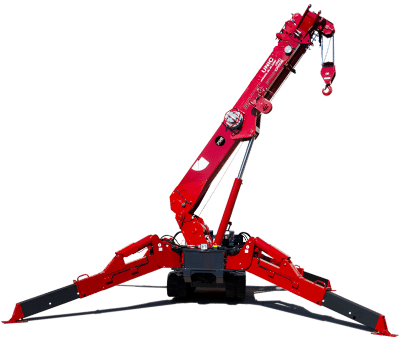

The SPYDERCRANE® URW706 mini crawler crane combines strong lifting performance with crawler mobility for demanding jobsites in the U.S. market. With a max capacity of 13,300 lbs at 9′ 10″ (over 6 tons), a 63 ft boom, and an 81 ft tip height, the URW706 delivers heavy-lift reach for construction, steel erection, and other work where standard cranes cannot access the lift.
Equipped with an electronic display load moment indicator, on-board self diagnostic computer system, and full function wireless remote, the URW706 is designed for ease of use. Mounted on dual rubber tracks, it can rotate 360 degrees in place for maneuvering in and out of tight spots. A quick disassemble system allows the outriggers, boom, and frame assembly to be removed from the carrier to reduce weight for transport or hoisting.
The URW706 is well suited for jobsites where a standard crane cannot reach: construction, steel erection, and heavy lifting in spaces that require compact crawler mobility.
| Specification | URW706 |
|---|---|
| Max Capacity | 13,300 lbs @ 9′ 10″ |
| Boom Length | 63 ft |
| Approximate Tip Height | 81 ft |
| Wire Rope on Drum | ~350 ft |
| Travel Dimensions (W × H × L) | 66″ × 86″ × 221″ |
| Approximate Footprint (Max) | 21′ × 20′ |
| Approximate Footprint (Min) | 17′ 6″ × 14′ 6″ |
| Weight of Crane | ~18,000 lbs |
Specifications subject to change. Download the official spec sheet for the most current data.
| Power Configuration | URW706 |
|---|---|
| Diesel | Standard |
| Electric with Diesel | Optional |
| 110V Battery Power / Diesel | Optional |
Diesel is the standard power configuration on the URW706. SPYDERCRANE® mini cranes also offer optional zero-emission Electric and 110 Volt battery configurations. These models run on battery power and plug into a standard 110 Volt wall outlet. No special wiring or electrical adapters needed to charge and maintain the battery while the crane operates. For added versatility, Electric options may also be paired with diesel as a dual-power configuration.
| URW706 | |
|---|---|
| Single Part Line | Standard |
| 4-Part Line | Standard |
| Jib with Searcher Hook | Standard |
| Load Moment Indicator with Electronic Display | Standard |
| Automatic Throttle Advancement | Standard |
| On-board Self Diagnostic Computer System | Standard |
| Full Function Wireless Remote | Standard |
| Automatic Hook Store | Standard |
Click any feature below to watch a short video and learn how it works.
| URW706 | |
|---|---|

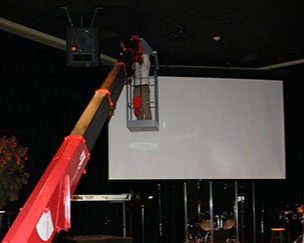

| Attachable Work Platform | Optional |
| Non-marking Tracks | Optional |

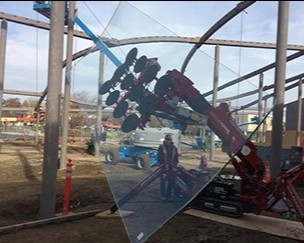

| SPYDERWEB Glass Manipulator | Optional |
| Woods Pwr Grip Hanging Cups | Optional |
| Exhaust Scrubber / Catalytic Converter | Optional |
| Arctic Kit / 12V & 110V Combo | Optional |
| Crane Lube Kit (Lube-a-Boom) | Optional |
| Fire Extinguisher | Optional |
| Spare Parts Kit (2-Year Supply) | Optional |
| Track Mats 3' × 6' (Set of 3) | Optional |
| Outrigger Pads | Optional |
| Trailer & Accessory Kit | Optional |
| Rigging | Optional |
| Spare Key (Pair) | Optional |
| Steel Pallet w/Fork Pockets | Optional |
| Strobe Light | Optional |
| Weatherproof Cover | Optional |
Click any featured accessory below to learn more.
Photos from real SPYDERCRANE 700 Series jobsites. Click any photo to view full size.
