PC295

SPECIFICATIONS

Specification	PC295
Powerplant	48V with 120V/15A recharging
Max Capacity	5,070 lbs (3-Part Hook Block)

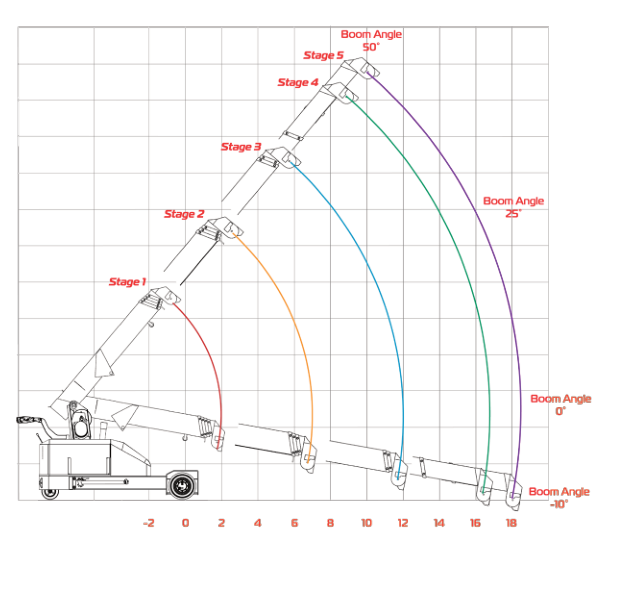

Working Range	-.5′ to 20′
Max Lifting Height	22′
Winch Speed	103′ per minute (3rd layer)
Boom Type	Five-section hexagonal-box
Telescope Speed	17 seconds
Angle Speed	-15°–50° in 6.5 seconds
Travel Turn Speed	540° in 60 seconds
Travel Speed	up to 1.1 mph
Travel Angle Limit (fore-and-aft/side-to-side)	No Load: 10°/5° Loaded: 5°/3°

Holding valves for all cylinders

Three-color safety beacon

Auto-braking drive wheels

Zero-emission powerplant

Zero-radius turning

Travel-control yoke

Extendable stabilizers to increase stability

Overload monitoring and prevention system

Hydraulic crane-control levers

Anti-crush rear bumper switch

Configuration-monitor with speed governor

Integrated hoist and tie-down points

Minimum-wire rope safety

Anti-two-block safety

PC295

Boom Stage 2 rated capacities in pounds by working radius
BOOM STAGE 2	Stabilizer State	2.4	4.3	5.5	6.4	6.8	7
	OUT	3,626	2,518	1,880	1,568	1,470	1,410
	IN	1,207	1,169	1,055	887	874	650

Boom Stage 3 rated capacities in pounds by working radius
BOOM STAGE 3	Stabilizer State	5.6	7.3	9.3	10.6	11.3	11.6
	OUT	1,840	1,294	1,040	886	790	790
	IN	Prohibited

Boom Stage 4 rated capacities in pounds by working radius
BOOM STAGE 4	Stabilizer State	10.2	11.5	12.9	14.3	16.1	17.2
	OUT	700	682	637	596	487	415
	IN	Prohibited

Boom Stage 5 rated capacities in pounds by working radius
BOOM STAGE 5	Stabilizer State	10.2	12.8	15.3	15.9	17.3	18.7
	OUT	700	605	565	538	496	418
	IN	Prohibited

Capacities in pounds (lbs). Black values = Stabilizers OUT. Red values = Stabilizers IN.
