UM445

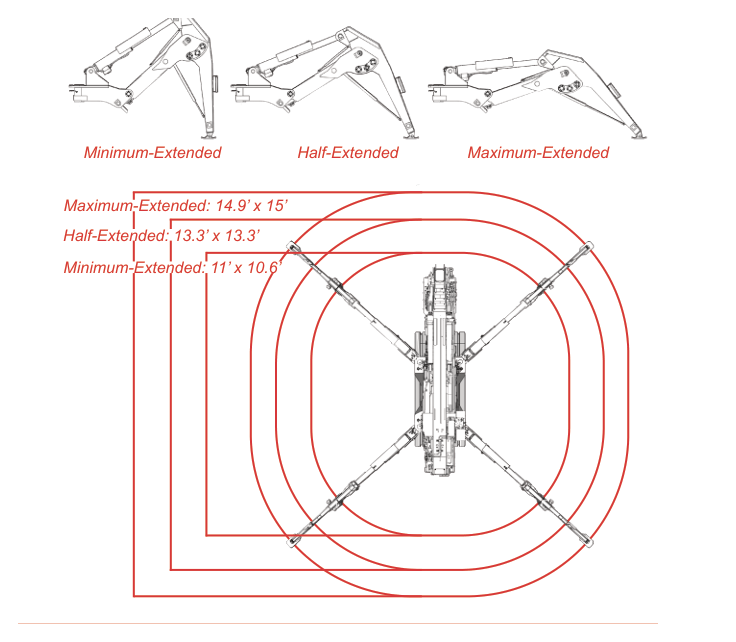

UM445 outrigger minimum, half, and maximum extension profiles with footprints 11 by 10.6 feet, 13.3 by 13.3 feet, and 14.9 by 15 feet

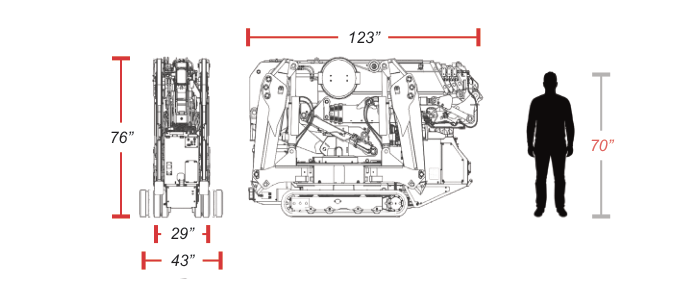

SPECIFICATIONS

Specification	UM445
System Working Weight	8,443 lbs
Max Rated Capacity	8,880 lbs (4-Part) / 2,200 lbs (1-Part)

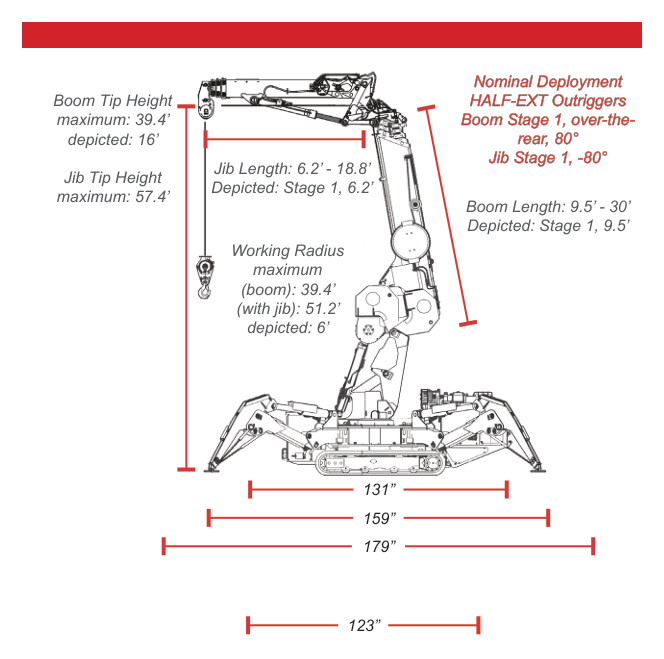

Boom/Jib Length	boom: 9.5′–30′ / jib: 6.2′–18.8′

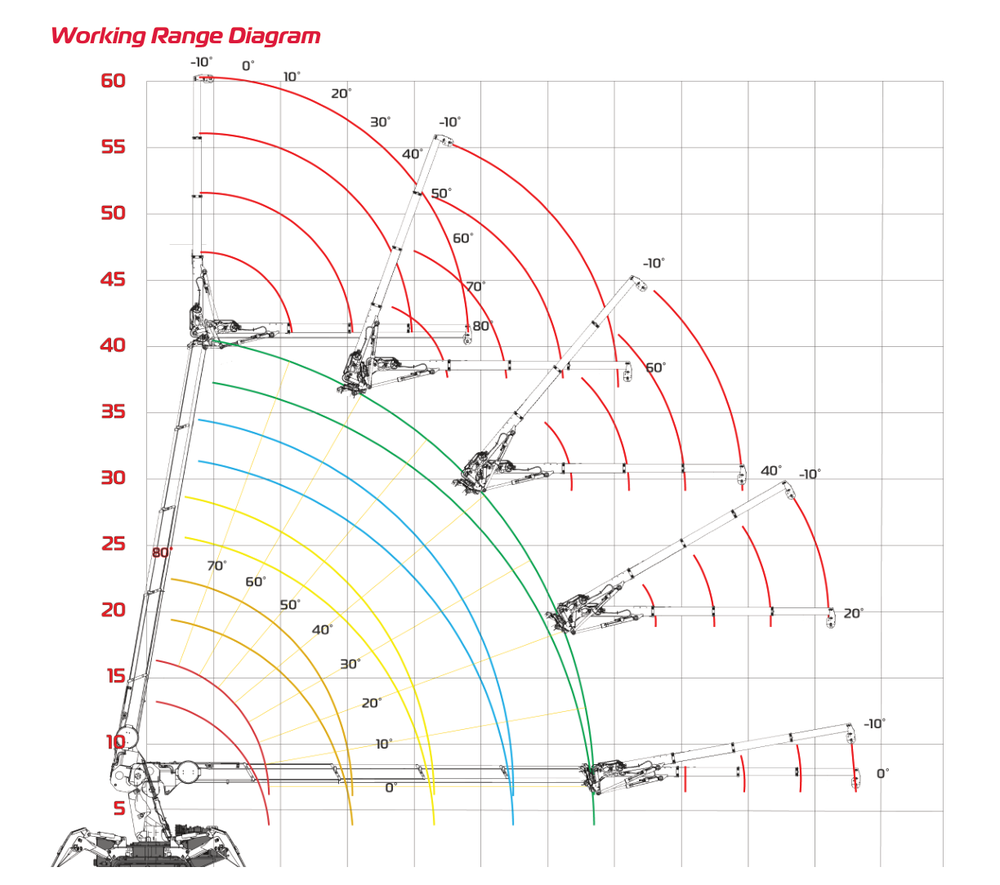

Working Radius	boom: 0′–39.4′ / w/ jib: 3′–51.2′
Maximum Tip Height	39.4′ / 57.4′ Max. Jib Tip Height
Wire Rope	194′ of 8mm
Hoisting Speed	20′ per minute (4-Part), 79′ per minute (1-Part)
Boom Type	Five-section hexagonal, hydraulic
Jib Type	Luffing four-section square, hydraulic
Telescope Speed (Jib)	23.6′ in 34 seconds (12.3′ in 21 seconds)
Slew Speed	1.2 rpm, continuous rotation
Max Travel Speed	1.2 mph
Travel Grade Limits	20° fore-aft, 10° side-side
On-Track Ground Pressure	9.86 PSI

Deployed crane point-loading data provided on-request.

FEATURES

Integrated computer controller

Integrated Load Moment Indicator

RF Remote Controller with situational awareness display

Integrated hydraulic holding valves and self-braking motors

Wireless remote controller

Detachable hydraulic luffing jib

Progressive, infinitely-variable controls

Pick-and-carry capable

Selectable-length and -geometry outriggers

Two-block and minimum-wire rope detection and prevention

4-Part, 2-Part, and Searcher Hook options

User-programmable upperworks maneuver limiter

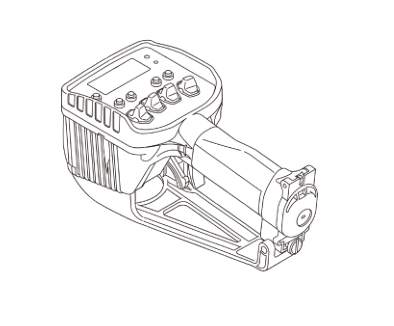

Remote Controller

458–459 MHz
≈330′ range
Designed for one-hand operation
Powered by four AAA batteries (10 hours of use)
Progressive-control action trigger

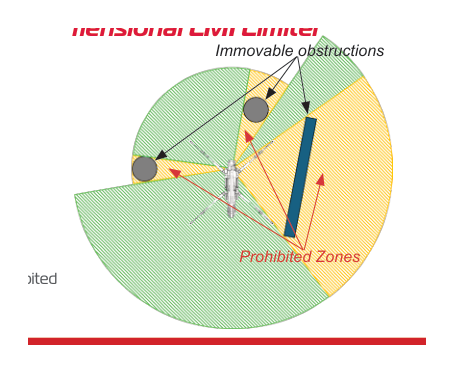

Three-Dimensional LMI Limiter

A user-programmable upperworks-maneuver limiter
Allows user to create prohibited zones based on specific slew angles, boom angles, working radii, and tip heights
LMI will prevent user from maneuvering upperworks into designated prohibited zones

UM445

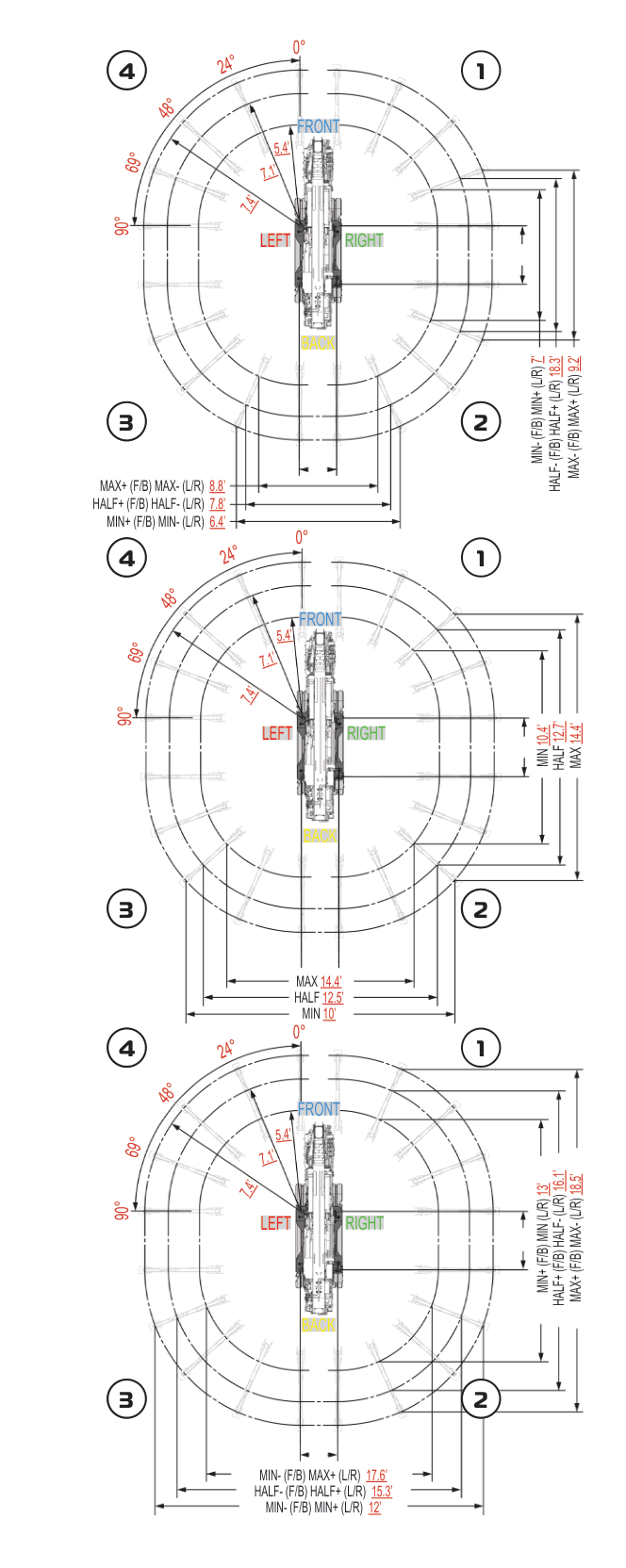

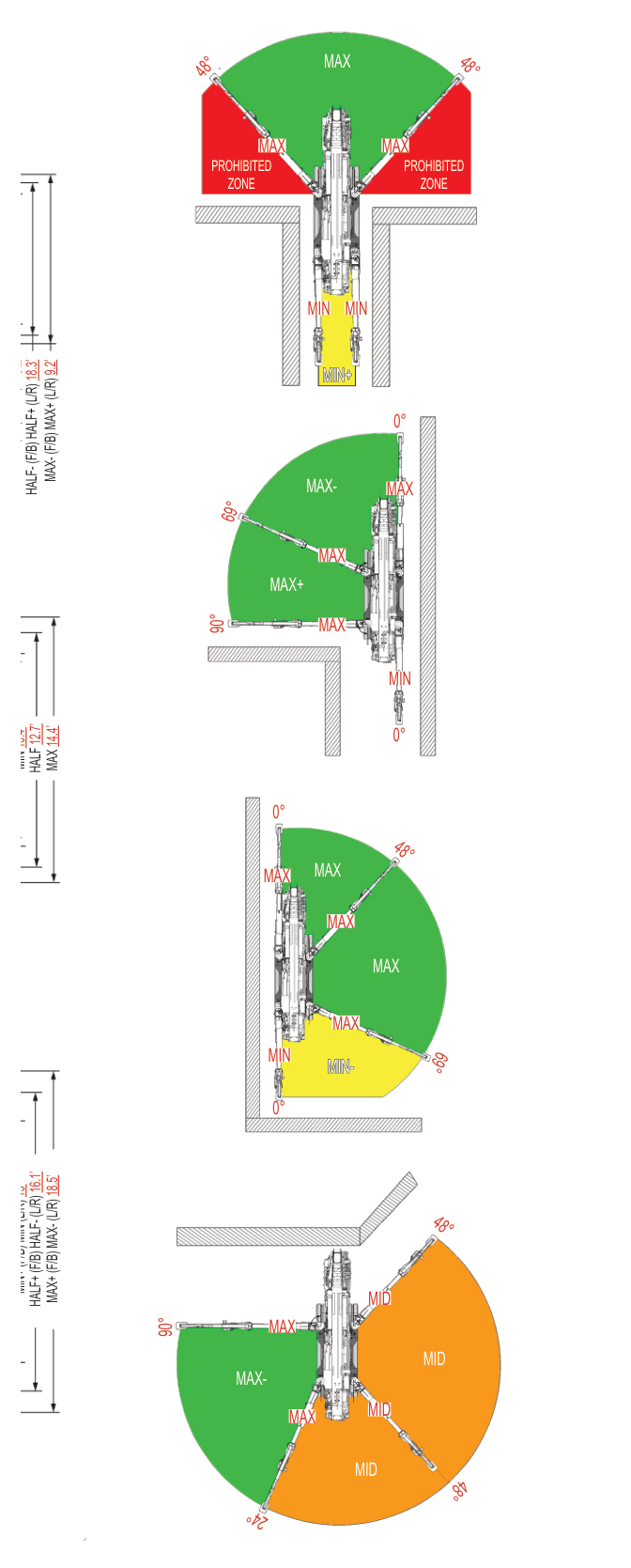

Selectable-Geometry Outriggers

Your SPYDERCRANE is equipped with selectable-geometry outriggers, allowing you to deploy it into limited-access and restricted-geometry environments. The safe working area adjusts to the outrigger geometry you select.

UM445

Load Chart, Boom, 4-Part Hook Block

Boom Stage 1 rated capacities in pounds by working radius and outrigger variation
Outrigger Variation	Working Radius (feet)
Outrigger Variation	3.28	4.9	5.9	6.5	8.2	8.67
MAX+	8,880	8,880	8,880	8,150	6,680	5,950
MAX, MID+	8,880	8,880	8,880	8,150	6,680	5,950
MID, MIN+	8,880	8,880	8,880	8,150	6,680	5,950
MIN	8,880	8,880	8,880	8,150	5,950	5,290
MAX-, MID-, MIN-	8,880	5,790	4,120	3,260	2,050	1,820

Boom Stage 2 rated capacities in pounds by working radius and outrigger variation
Outrigger Variation	Working Radius (feet)
Outrigger Variation	3.28	4.9	5.9	6.5	8.2	9.8	11.4	13.1	14.73
MAX+	8,880	8,880	8,880	8,150	6,680	5,460	4,580	3,920	3,370
MAX, MID+	8,880	8,880	8,880	8,150	6,680	5,460	4,580	3,920	3,370
MID, MIN+	8,880	8,880	8,880	8,150	6,680	5,460	4,340	3,390	2,660
MIN	8,880	8,880	8,880	8,150	5,950	4,030	2,910	2,200	1,740
MAX-, MID-, MIN-	8,880	5,790	4,120	3,260	2,050	1,410	1,030	740	520

Boom Stage 3 rated capacities in pounds by working radius and outrigger variation
Outrigger Variation	Working Radius (feet)
Outrigger Variation	3.28	4.9	5.9	6.5	8.2	9.8	11.4	13.1	14.7	16.4	18.0	19.6	20.65
MAX+	5,240	5,240	5,240	5,240	5,240	4,690	4,140	3,810	3,370	2,930	2,600	2,380	2,270
MAX, MID+	5,240	5,240	5,240	5,240	5,240	4,690	4,140	3,810	3,370	2,930	2,510	2,130	1,960
MID, MIN+	5,240	5,240	5,240	5,240	5,240	4,690	4,010	3,300	2,660	2,200	1,850	1,540	1,380
MIN	5,240	5,240	5,240	5,240	5,240	3,880	2,910	2,200	1,740	1,430	1,190	990	880
MAX-, MID-, MIN-	5,240	5,240	5,240	5,240	5,240	1,410	1,030	740	520	390	280	190	150

Boom Stage 4 rated capacities in pounds by working radius and outrigger variation
Outrigger Variation	Working Radius (feet)
Outrigger Variation	4.9	5.9	6.5	8.2	9.8	11.4	13.1	14.7	16.4	18.0	19.6	21.3	22.9	24.6	26.2	26.44
MAX+	4,470	4,470	4,470	4,470	4,030	3,590	3,260	2,820	2,600	2,380	2,160	1,960	1,820	1,710	1,580	1,580
MAX, MID+	4,470	4,470	4,470	4,470	4,030	3,590	3,260	2,820	2,600	2,380	2,130	1,870	1,670	1,470	1,300	1,300
MID, MIN+	4,470	4,470	4,470	4,470	4,030	3,590	3,080	2,620	2,200	1,850	1,540	1,300	1,140	1,010	920	920
MIN	4,470	4,470	4,470	4,470	3,680	2,880	2,200	1,740	1,430	1,190	990	830	720	630	550	550
MAX-, MID-, MIN-	4,470	3,700	3,080	2,050	1,410	1,030	740	520	390	280	190	150	130

Boom Stage 5 rated capacities in pounds by working radius and outrigger variation
Outrigger Variation	Working Radius (feet)
Outrigger Variation	4.9	5.9	6.5	8.2	9.8	11.4	13.1	14.7	16.4	18.0	19.6	21.3	22.9	24.6	26.2	27.8	29.5	31.1	32.23
MAX+	4,120	4,120	4,120	4,120	3,590	3,190	2,820	2,530	2,290	2,090	1,940	1,760	1,630	1,520	1,430	1,340	1,250	1,190	1,140
MAX, MID+	4,120	4,120	4,120	4,120	3,590	3,190	2,820	2,530	2,290	2,090	1,940	1,760	1,630	1,470	1,300	1,190	1,100	990	940
MID, MIN+	4,120	4,120	4,120	4,120	3,590	3,190	2,820	2,530	2,200	1,850	1,540	1,300	1,140	1,010	920	830	770	700	660
MIN	4,120	4,120	4,120	4,120	3,480	2,860	2,200	1,740	1,430	1,190	990	830	720	630	550	480	440	390	370
MAX-, MID-, MIN-	4,120	3,480	3,040	2,050	1,410	1,030	740	520	390	280	190	150	130

Capacities in pounds (lbs). When using the 4-Part Hook Block, deduct 70 lbs and the weight of the rigging to determine net-rated load capacity. 2-Part maximum rated capacity is 4,470 lbs. 1-Part maximum rated capacity is 2,220 lbs.

UM445

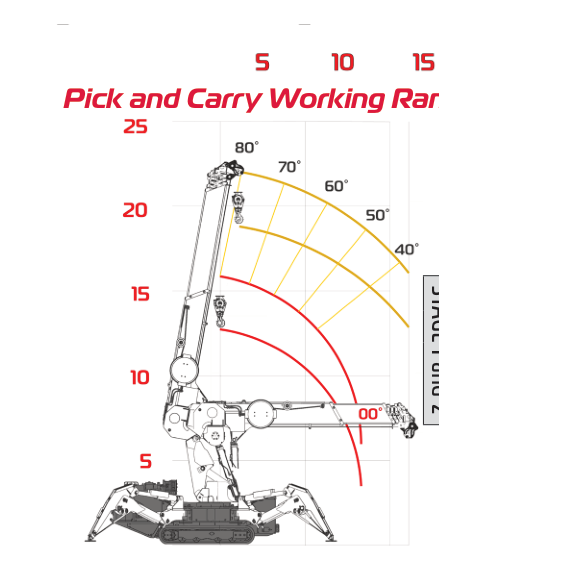

Pick and Carry Working Range Diagram and Load Chart

UM445 pick and carry working range diagram for boom stages 1 and 2 from 0 to 80 degrees

Pick and carry Stage 1 and 2 rated capacities in pounds by working radius
STAGE 1 and 2	Outrigger Variation	Working Radius (feet)
	Outrigger Variation	3.3	4.5	6.5	9	9.8	11.5
	Deployed/Raised	1,100	1,100	970	441	330	154

Pick-and-carry capacities in pounds (lbs) with outriggers deployed/raised.
