URW094

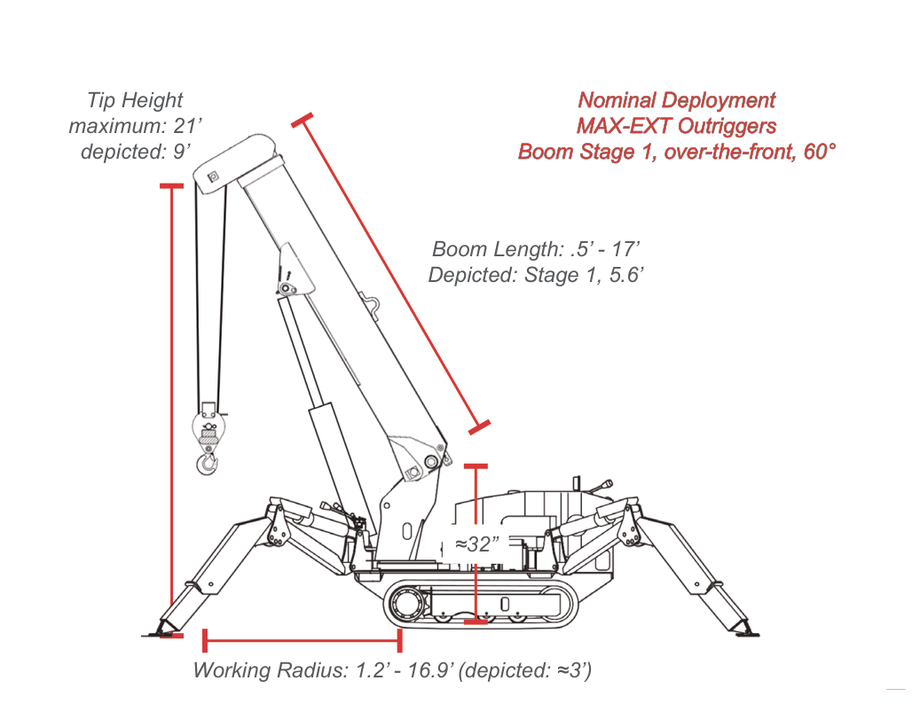

SPYDERCRANE URW094 nominal deployment with max-ext outriggers, boom stage 1 over-the-front at 60 degrees

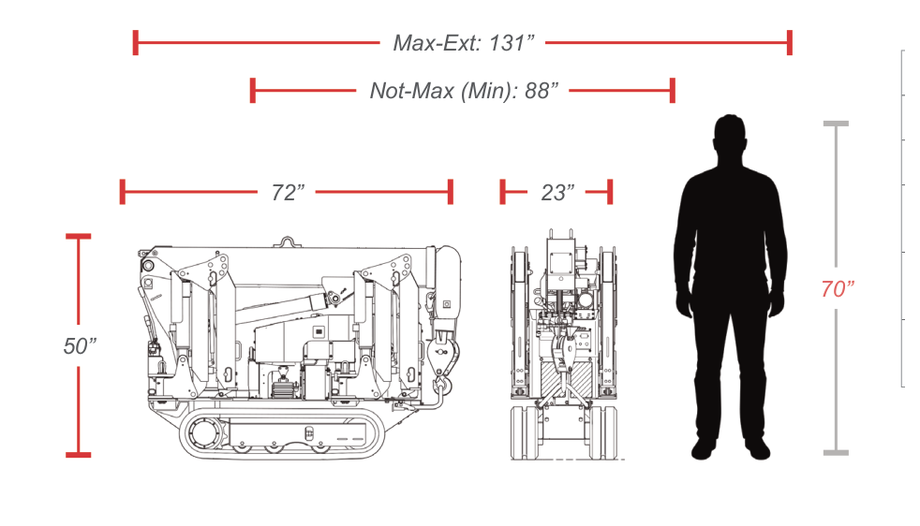

URW094 stowed transport dimensions: 72 inches long, 50 inches high, 23 inches wide, with Max-Ext 131 inches and Not-Max 88 inches

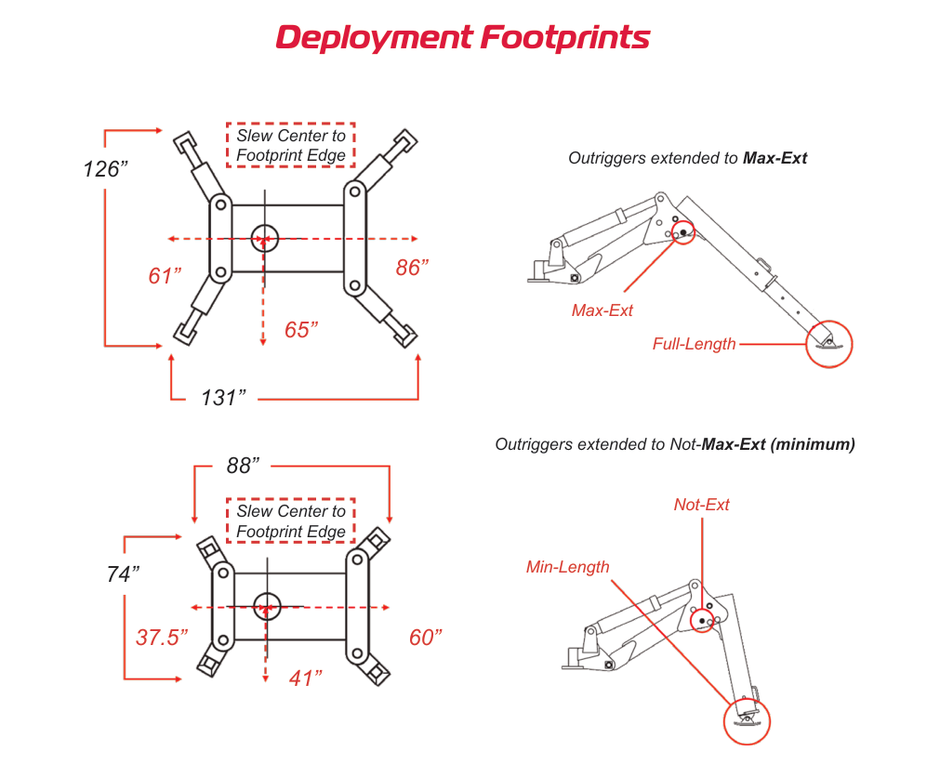

URW094 deployment footprints at max-ext and not-max-ext outrigger settings

SPECIFICATIONS

SpecificationURW094
Working Weight2,210 lbs (1,000 kg)
Powerplant48V with 120V/15A recharging
Max Rated Capacity1,990 lbs (903 kg)
Boom Length.5′–17′ (.15M – 5.2M)
Working Radius.5′–16.9′ (.15M – 5.17M)
Maximum Tip Height21′ (6.4M)
Wire Rope88.5′ (27M) of 7mm 6x29 IWRC
Winch Speed55′ (17M) per minute (at 3rd layer)
Boom TypeFour-section square-box, hydraulic
Telescope Speed12.3′ (3.76M) in 17 seconds
Angle Speed0°–78° in 6.5 seconds
Slew Speed1.5 rpm, continuous rotation
Max Travel Speed1.36 mph (2.2 km/h) (high-power setting)
Travel Grade/Limits20° fore-aft, 5° side-side, 3° side-side (off road)

FEATURES

Integrated computer controller
Rough terrain travel capability
Load weight gauge
Multiple transport options
Wireless remote controller
On-board toolkit
Progressive, infinitely-variable controls
Integrated hydraulic holding valves and self-braking motors
Selectable-length and -geometry outriggers
Two-block and minimum-wire rope detection and prevention
Crane/outrigger function control interlock
Smart battery management system

Remote Controller

  • 458–459 MHz
  • ≈330′ range
  • Designed for one-hand operation
  • Powered by four AAA batteries (10 hours of use)
  • Progressive-control action trigger

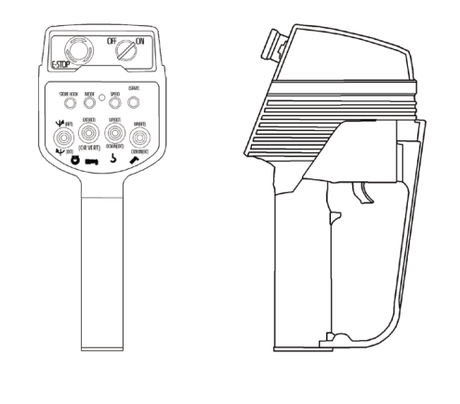

URW094 wireless remote controller front and side views

Transport Options

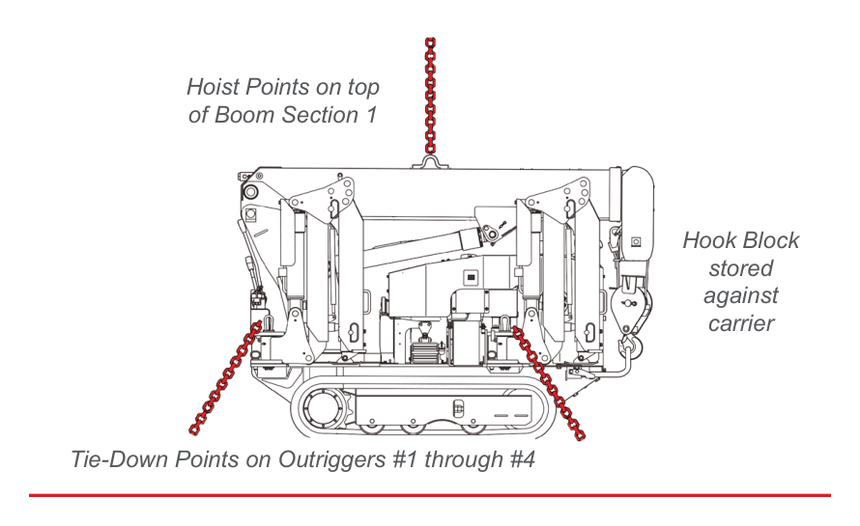

URW094 transport configuration showing hoist points on boom section 1, tie-down points on outriggers, and hook block stored against carrier

URW094

Working Range, Boom

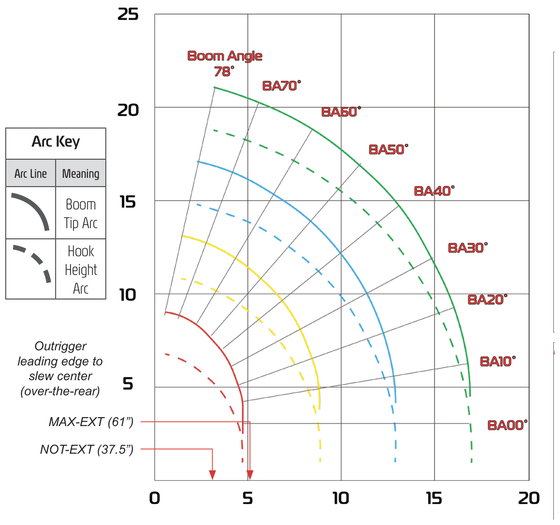

URW094 working range chart showing boom tip arc and hook height arc from 0 to 78 degrees, with Arc Key and outrigger leading-edge distances

Load Chart, Boom, 2-Part Hook Block

BOOM STAGE 1 Deployment State Working Radius (feet)
3 3.5 4 4.5 4.62
MAX-EXT 1,9901,9901,9901,9901,990
NOT-EXT 1,7601,7601,6201,4701,430
BOOM STAGE 2 Deployment State 3 3.5 4 4.5 7 8 8.82
MAX-EXT 1,9901,9901,9901,9901,6601,4601,270
NOT-EXT 1,7601,7601,4501,300800650500
BOOM STAGE 3 Deployment State 3 6 6.5 8 9 10 11 12.89
MAX-EXT 1,8701,8601,6701,4701,3001,150950700
NOT-EXT 1,1001,080800650500400340250
BOOM STAGE 4 Deployment State 8 9 10 11 12 14 16 16.96
MAX-EXT 1,4501,3001,140980840650500440
NOT-EXT 750520390340280200150140

Capacities in pounds (lbs). Black values = MAX-EXT. Red values = NOT-EXT.

Selectable-Geometry Outriggers

Your SPYDERCRANE is equipped with selectable-geometry outriggers, allowing you to deploy it into limited-access and restricted-geometry environments. The safe working area adjusts to the outrigger geometry you select.

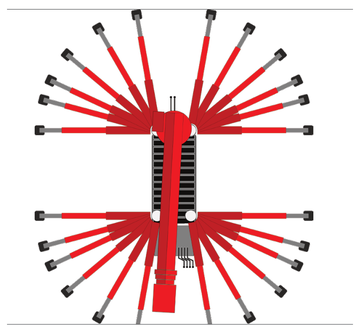

URW094 selectable-geometry outrigger position diagram

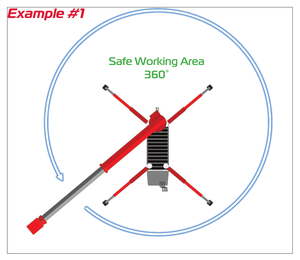

URW094 outrigger example 1 with 360 degree safe working area

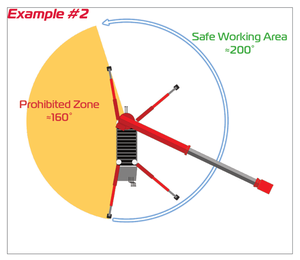

URW094 outrigger example 2 showing safe working area of about 200 degrees

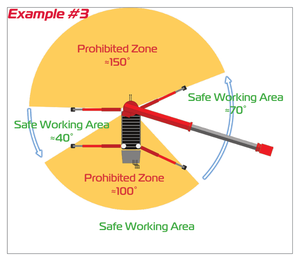

URW094 outrigger example 3 showing multiple safe working areas for restricted geometry
