URW1006

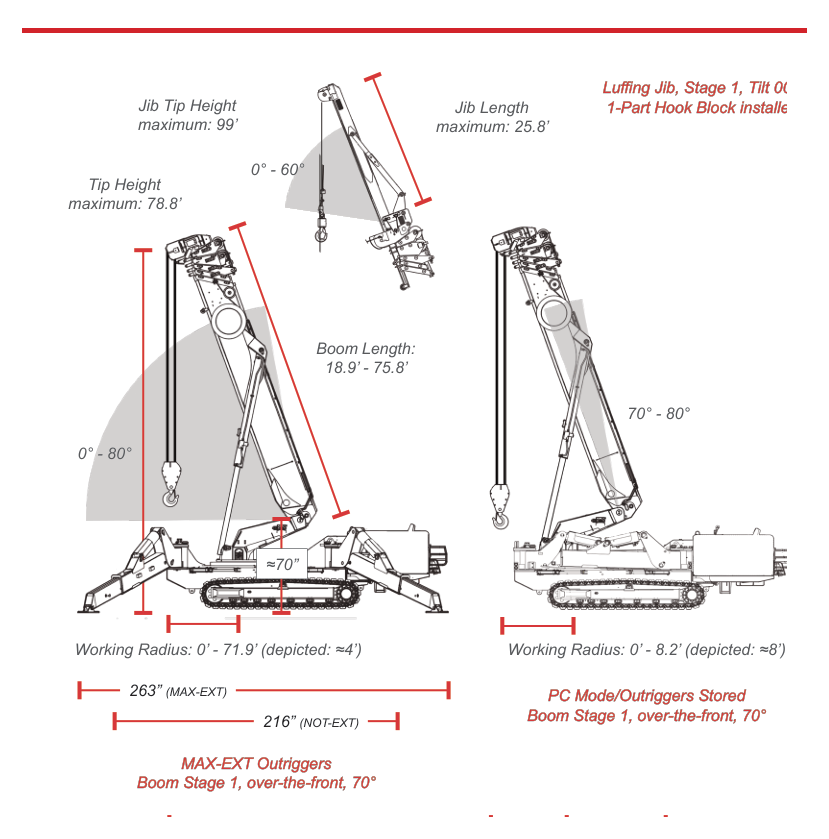

SPYDERCRANE URW1006 nominal deployment with max-ext outriggers, boom tip 78.8 ft and jib tip 99 ft, boom length 18.9 to 75.8 ft

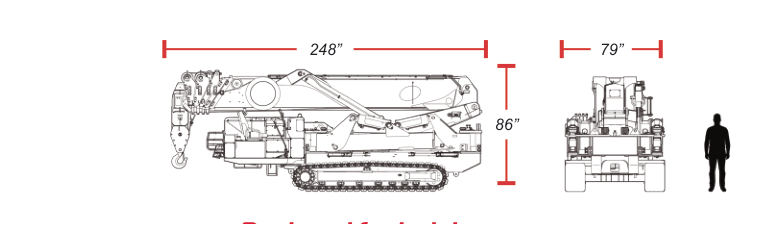

URW1006 stowed transport dimensions: 248 inches long, 86 inches high, 79 inches wide

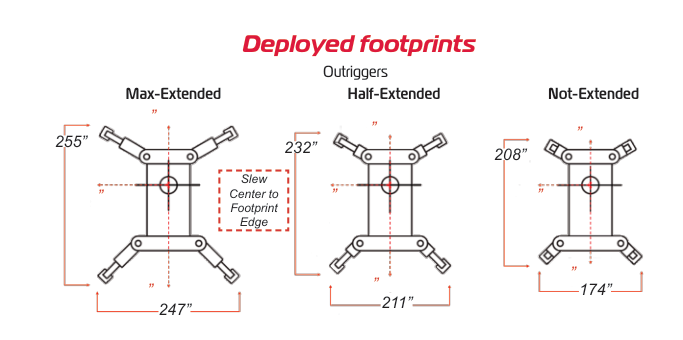

URW1006 deployment footprints at max-ext, half-ext, and not-ext outrigger settings

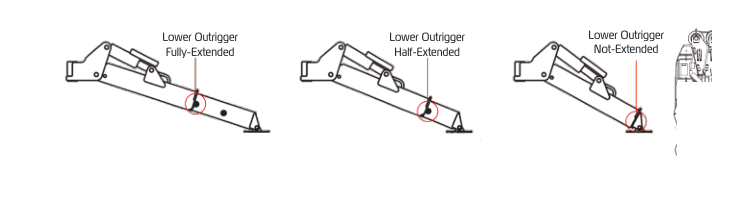

URW1006 lower outrigger fully-extended, half-extended, and not-extended pin positions

SPECIFICATIONS

SpecificationURW1006
System Working Weight30,970 lbs / 29,780 lbs (jib dismounted)
Max Rated Capacity22,350 lbs (4-Part) / 4,510 lbs (1-Part)
Boom Length18.9′–75.8′
Working Radius0′–71.9′
Maximum Tip Height78.8′ / 99′ max jib tip height
Wire Rope459.3′ of 13mm 6x31 IWRC
Winch Speed210′ per minute (at 4th layer)
Boom TypeSix-section hexagonal, hydraulic
Telescope Speed56.9′ in 91 seconds
Angle Speed0°–80° in 55 seconds
Slew Speed2.5 rpm, continuous rotation
Max Travel Speed3.5 mph
Travel Grade/Limits23° fore-aft, 20° side-side
On-Track Ground Pressure9.92 PSI

Deployed crane point-loading data provided on-request.

FEATURES

Integrated computer controller
Rough terrain travel capability
Load moment indicator
Selectable-length outriggers
Wireless remote controller
Pick-and-carry capability
Progressive, infinitely-variable controls
Integrated hydraulic holding valves and self-braking motors
Crane/outrigger function control interlock
Two-block and minimum-wire rope detection and prevention
Multiple transport options
Outrigger/Upperworks cross-command safety cutout
15.5′/25.8′ luffing jib with 1-part hook block

Transport Options

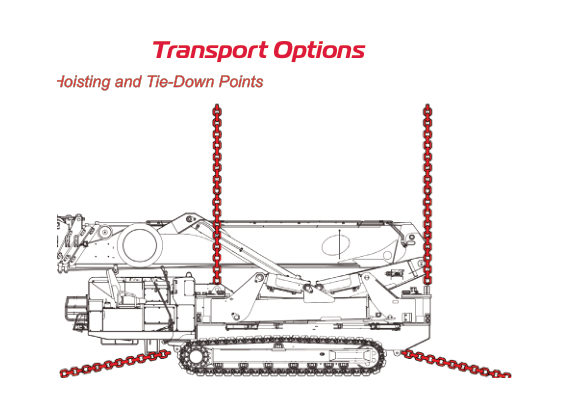

URW1006 transport configuration showing four hoisting and tie-down points

URW1006

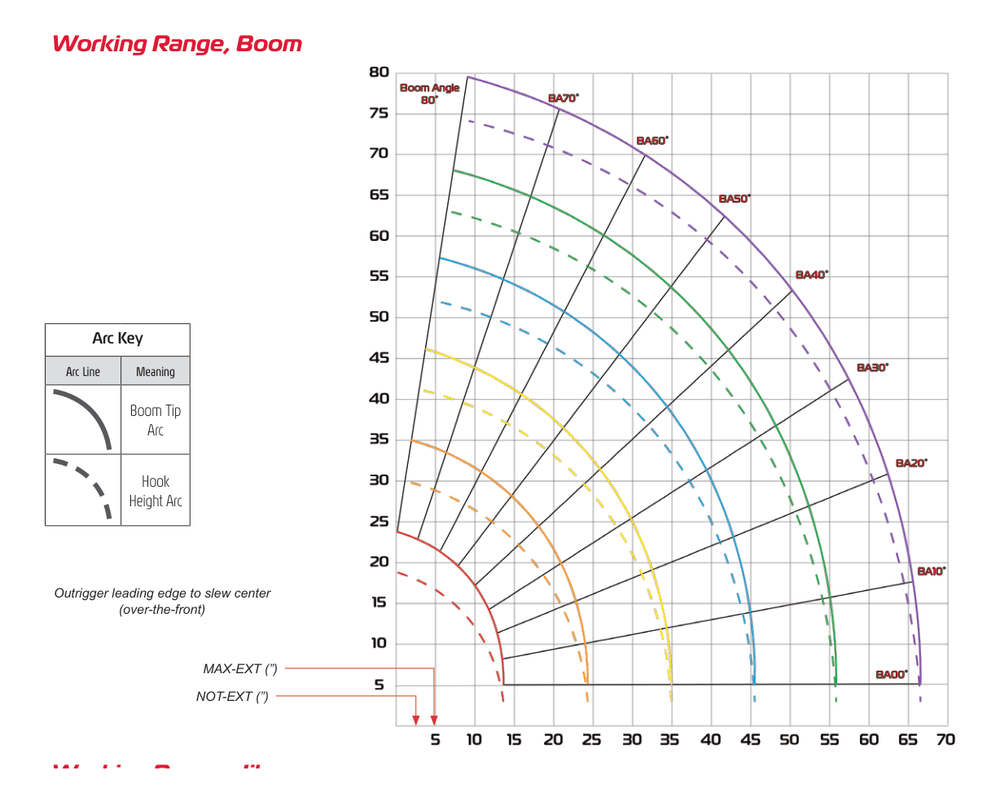

URW1006 working range chart for boom tip arc and hook height arc from 0 to 80 degrees across boom stages 1 through 6

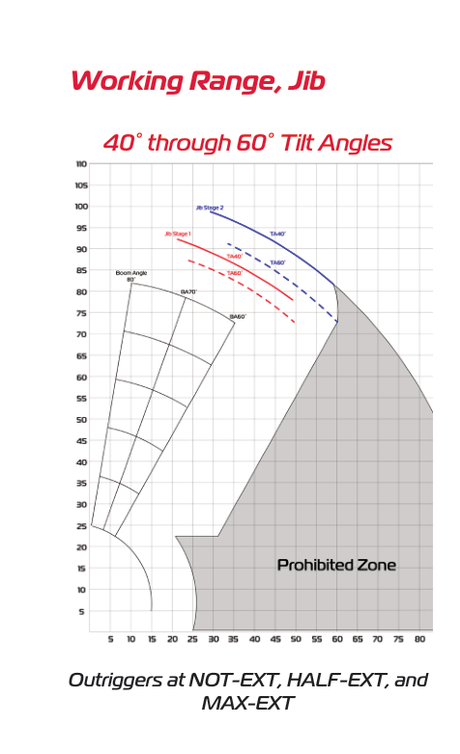

URW1006 jib working range at tilt angles 40 through 60 degrees, all outrigger positions

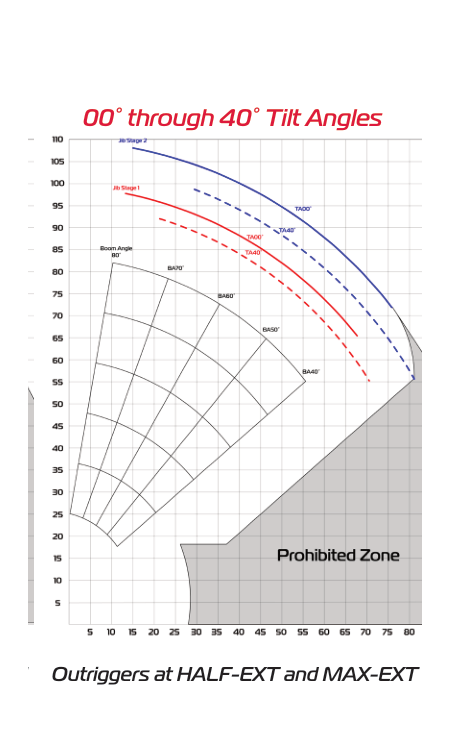

URW1006 jib working range at tilt angles 0 through 40 degrees with HALF-EXT and MAX-EXT outriggers

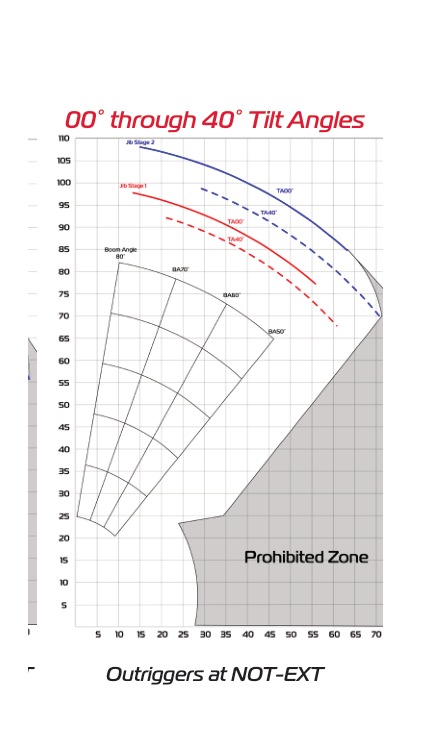

URW1006 jib working range at tilt angles 0 through 40 degrees with NOT-EXT outriggers

URW1006

Load Chart, Boom, 4-Part Hook Block

STAGE 1 Deployment State Working Radius (feet)
8 9.8 10 11 13 14 15
MAX-EXT 22,35022,35022,00019,76016,75014,51012,210
HALF-EXT 22,35022,35022,00018,75015,39013,64011,770
NOT-EXT 22,35022,35021,93017,92014,16012,76011,330
STAGE 2 Deployment State Working Radius (feet)
8 9.8 11 13 14 17 20 23 26.5
MAX-EXT 22,35022,35019,76016,78015,44012,2209,4907,5504,930
HALF-EXT 22,35022,35018,64015,76014,32011,3908,6106,6704,270
NOT-EXT 22,35022,35017,90014,34013,1309,5007,0805,3503,500
STAGE 3 Deployment State Working Radius (feet)
13 16 20 23 26 30 33 37.9
MAX-EXT 12,95010,9108,4906,9005,3603,8803,3502,510
HALF-EXT 12,95010,9108,4806,5704,9103,5602,7902,070
NOT-EXT 12,95010,5107,6905,6804,1302,7902,1301,340
STAGE 4 Deployment State Working Radius (feet)
16.5 20 23 26 33 36 39 43 46 49.3
MAX-EXT 8,6507,4706,5805,6703,6703,0802,4402,0301,8401,630
HALF-EXT 8,6507,4706,5805,6703,6702,8602,2901,8001,5101,190
NOT-EXT 8,6407,2306,0204,9202,8002,1901,6701,190850520
STAGE 5 Deployment State Working Radius (feet)
20 26 33 39 46 49 53 56 59 60.6
MAX-EXT 6,4105,2003,9102,8802,0601,7501,4801,2801,080970
HALF-EXT 6,4105,2003,9102,8801,8601,5601,210970770660
NOT-EXT 6,3904,7703,1902,1301,3301,070720440
STAGE 6 Deployment State Working Radius (feet)
26 33 39 46 53 59 65 71.9
MAX-EXT 4,7503,6902,8802,1701,8101,4101,000630
HALF-EXT 4,7503,6902,8802,0101,290810510
NOT-EXT 4,7503,4602,4401,570960550

Capacities in pounds (lbs). Black values = MAX-EXT / HALF-EXT. Red values = NOT-EXT. Blank cells = no rated capacity at that radius.

Load Chart, Jib — 1-Part Hook Block (MAX-EXT)

JIB STAGE 1 Tilt Angles Boom Angle
80° 70° 60° 50° 40°
0° 2,3102,3102,2001,030550
20° 1,9801,9801,650990550
40° 1,6501,6501,270990500
60° 1,4501,4501,160
JIB STAGE 2 Tilt Angles Boom Angle
80° 70° 60° 50° 40°
0° 2,3102,3101,650880390
20° 1,4901,4901,050720390
40° 990990720550390
60° 770770610

Load Chart, Jib — 1-Part Hook Block (HALF-EXT)

JIB STAGE 1 Tilt Angles Boom Angle
80° 70° 60° 50° 40°
0° 2,3102,3102,2001,030550
20° 1,9801,9801,650990550
40° 1,6501,6501,270990500
60° 1,4501,4501,160
JIB STAGE 2 Tilt Angles Boom Angle
80° 70° 60° 50° 40°
0° 2,3102,3101,650880390
20° 1,4901,4901,050720390
40° 990990720550390
60° 770770610

Load Chart, Jib — 1-Part Hook Block (NOT-EXT)

JIB STAGE 1 Tilt Angles Boom Angle
80° 70° 60° 50°
0° 2,3102,3101,650770
20° 1,9801,9801,430700
40° 1,6501,6501,270590
60° 1,4501,4501,160
JIB STAGE 2 Tilt Angles Boom Angle
80° 70° 60° 50°
0° 2,3102,3101,430660
20° 1,4901,4901,050550
40° 990990720550
60° 770770610

Jib capacities in pounds (lbs). Blank cells = no rated capacity at that boom angle / tilt.

URW1006

Working Range Diagrams and Load Charts, PC Mode

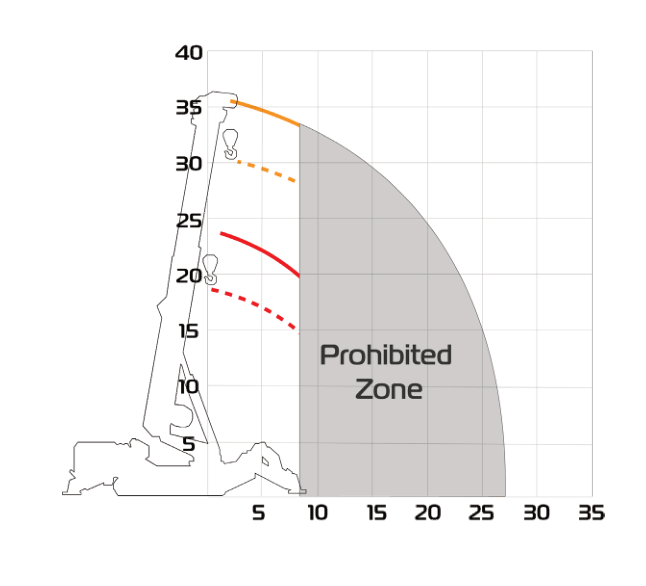

URW1006 PC Mode working range diagram with prohibited zone beyond 8.2 ft working radius

PC Mode ENABLED

Outriggers OFF the Ground Outriggers STORED
MAX Working Radius 8.2 ft8.2 ft
MAX Rated Capacity 3,300 lbs3,300 lbs

PC Mode allows pick-and-carry operation with outriggers off the ground or stored. Maximum working radius is 8.2 ft with a maximum rated capacity of 3,300 lbs.
