URW205
SPECIFICATIONS
| Specification | URW205 |
|---|---|
| System Working Weight | 4,330 lbs (1,964 kg) (gas/propane powerplant) |
| Max Rated Capacity | 5,800 lbs (2,631 kg) 4-part / 1,630 lbs (739 kg) 1-part |

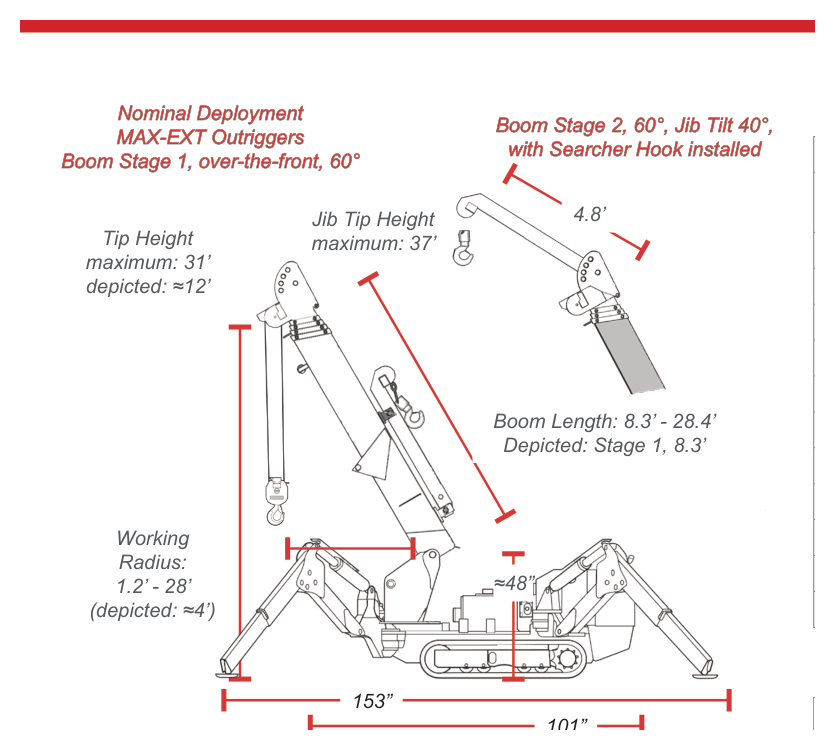

| Boom Length | 8.3′–28.4′ (2.53M – 8.65M) |

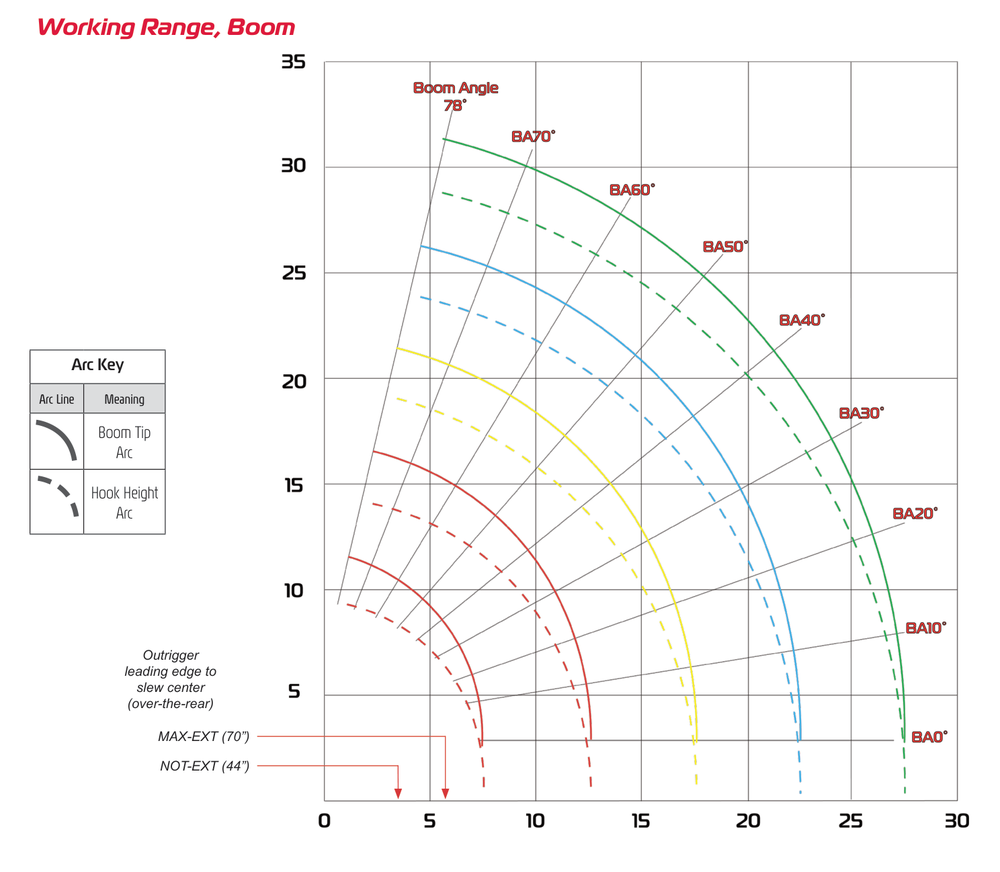

| Working Radius | 3′–27.6′ (.91M – 8.4M) |
| Maximum Tip Height | 31′ (9.45M) / 37′ (11.28M) max jib tip height |
| Wire Rope | 155′ (54M) of 5/16″ (8mm) 6x26 (WS) IWRC |
| Winch Speed | 33′ (10M) per minute (at 4th layer w/ 2-part) |
| Boom Type | Five-section hexagonal, hydraulic |
| Telescope Speed | 20′ (6.12M) in 20 seconds |
| Angle Speed | 0°–78° in 11 seconds |
| Slew Speed | 1.5 rpm, continuous rotation |
| Max Travel Speed | 1.43 mph (2.3 km/h) (gasoline, WOT) |
| Travel Grade/Limits | 20° fore-aft, 5° side-side, 3° side-side (off road) |
FEATURES
Integrated computer controller
On-board toolkit
Load weight gauge
Integrated hydraulic holding valves and self-braking motors
Wireless remote controller
Real-time stability monitoring
Progressive infinitely-variable controls

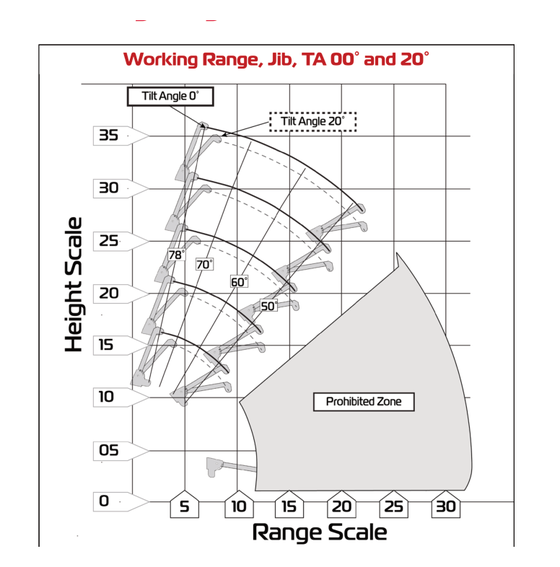

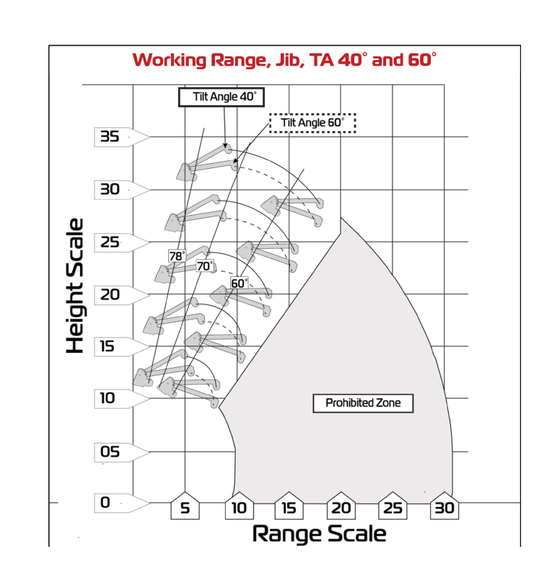

Quick-install jib system

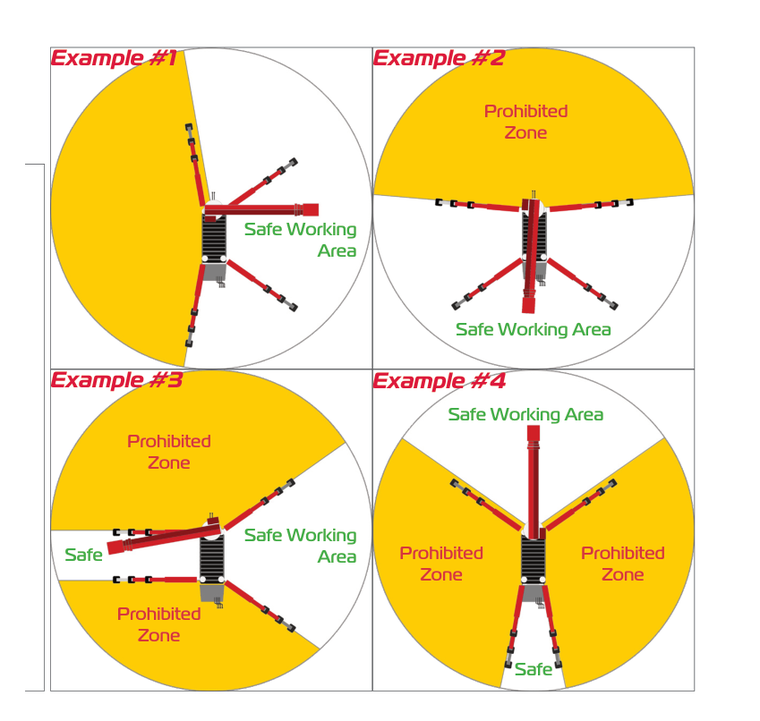

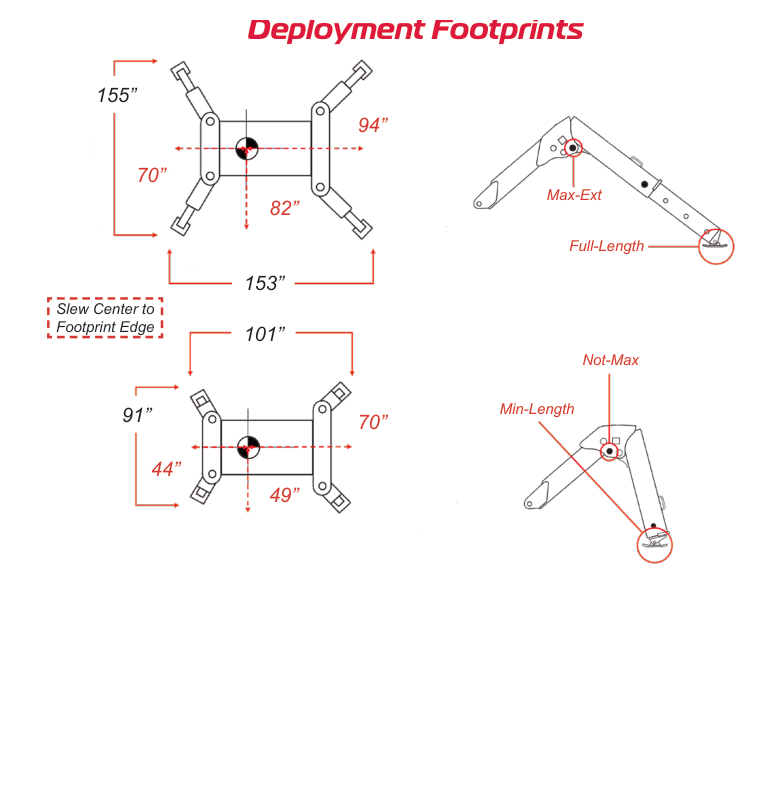

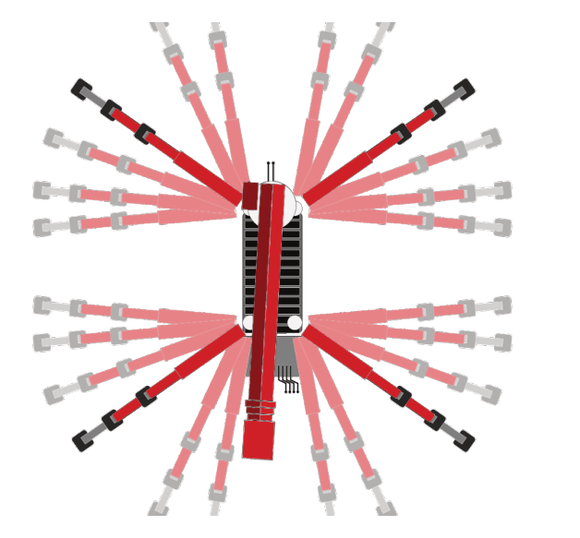

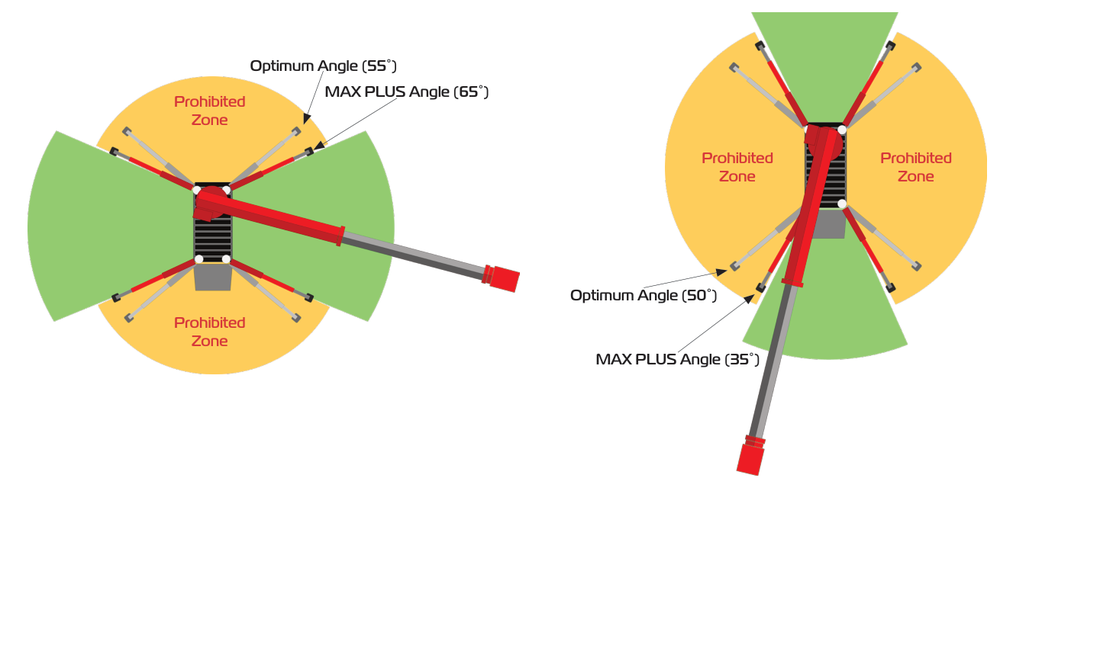

Selectable-length and -geometry outriggers
Two-block and minimum-wire rope detection and prevention
Multiple transport options
Rough terrain travel capability

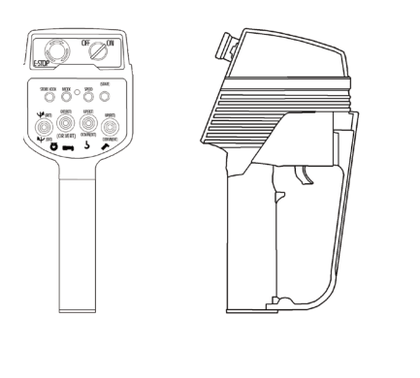

Remote Controller
- 458–459 MHz
- ≈330′ range
- Designed for one-hand operation
- Powered by four AAA batteries (10 hours of use)
- Progressive-control action trigger

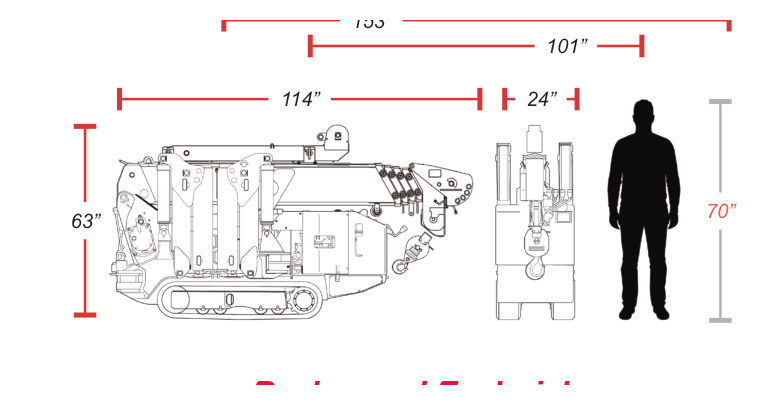

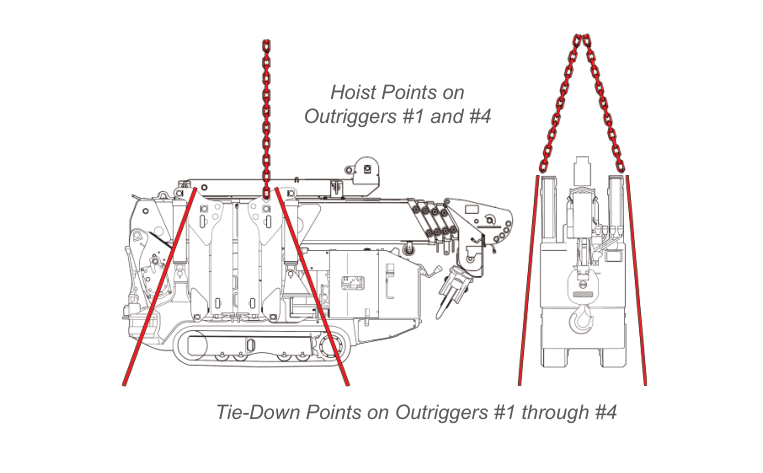

Transport Options
