URW706

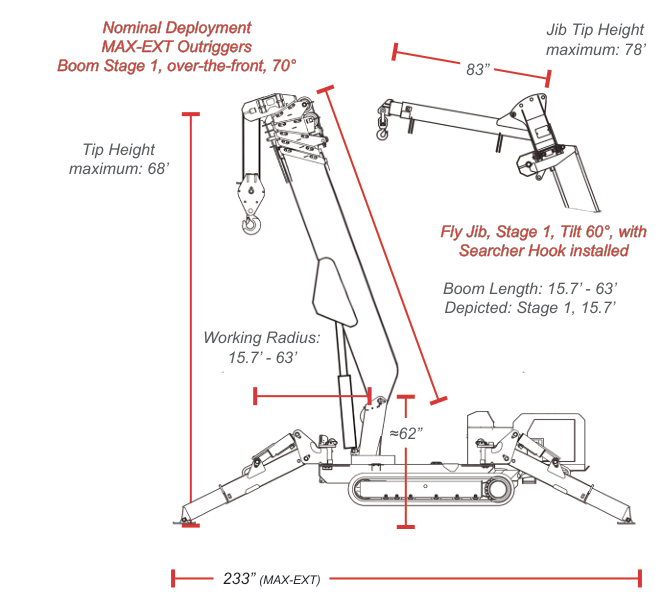

SPYDERCRANE URW706 nominal deployment with max-ext outriggers, boom stage 1 over-the-front at 70 degrees, and fly jib detail

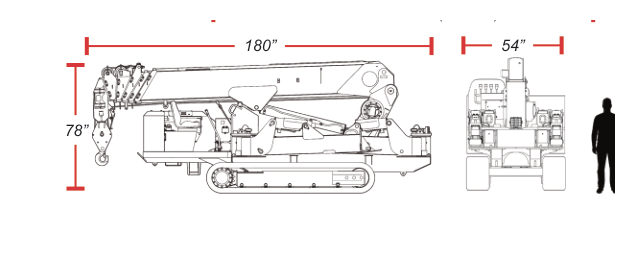

URW706 stowed transport dimensions: 180 inches long, 78 inches high, 54 inches wide

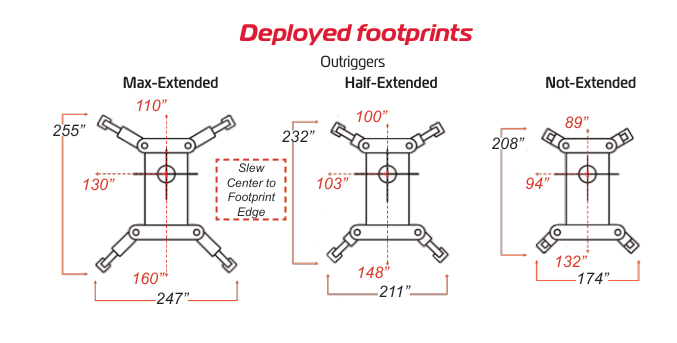

URW706 deployment footprints at max-ext, half-ext, and not-ext outrigger settings

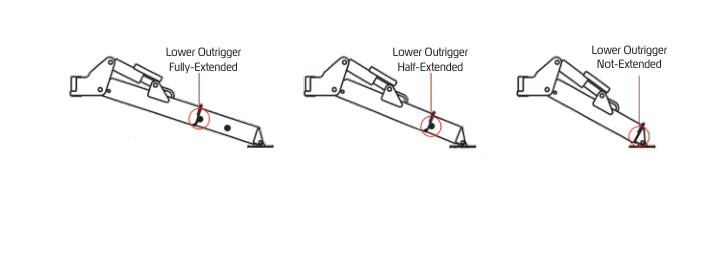

URW706 lower outrigger fully-extended, half-extended, and not-extended pin positions

SPECIFICATIONS

Specification	URW706
System Working Weight	18,270 lbs (8,285 kg) (diesel only)
Max Rated Capacity	13,330 lbs (6,032 kg) (4-Part)
Boom Length	15.7′–63′ (4.78M – 19.2M)
Working Radius	15.7′–63′ (4.8M – 19.2M)
Maximum Tip Height	68′ (20.7M) / 78′ (23.8M) max jib tip height
Wire Rope	341′ (104M) of 10mm 6x29 WS IWRC
Winch Speed	144.1′ (44M) per minute (at 5th layer)
Boom Type	Six-section hexagonal, hydraulic
Telescope Speed	47.2′ in 52 seconds
Angle Speed	0°–80° in 16 seconds
Slew Speed	2.5 rpm, continuous rotation
Max Travel Speed	3.5 mph
Travel Grade/Limits	23° fore-aft, 20° side-side

FEATURES

Integrated computer controller

Rough terrain travel capability

Load moment indicator

Selectable-length outriggers

Wireless remote controller

On-board toolkit

Progressive, infinitely-variable controls

Integrated hydraulic holding valves and self-braking motors

Crane/outrigger function control interlock

Two-block and minimum-wire rope detection and prevention

Multiple transport options

Outrigger/Upperworks cross-command safety cutout

6.9′/10.2′ fly jib with searcher and 1-part hook blocks

Remote Controller

458–459 MHz
≈330′ range
Designed for one-hand operation
Powered by four AAA batteries (10 hours of use)
Progressive-control action trigger

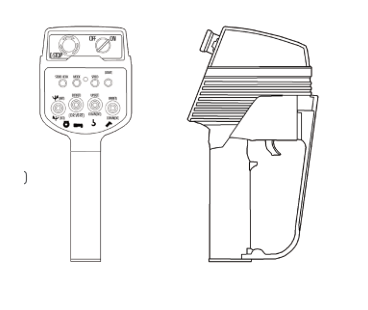

URW706 wireless remote controller front and side views

Transport Options

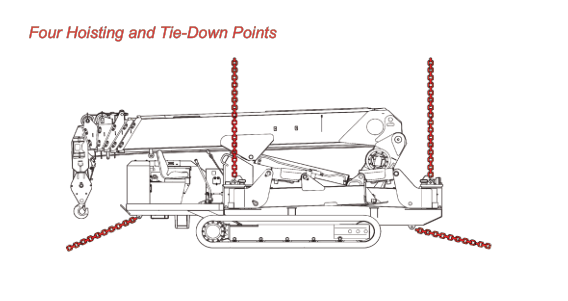

URW706 transport configuration showing four hoisting and tie-down points

URW706

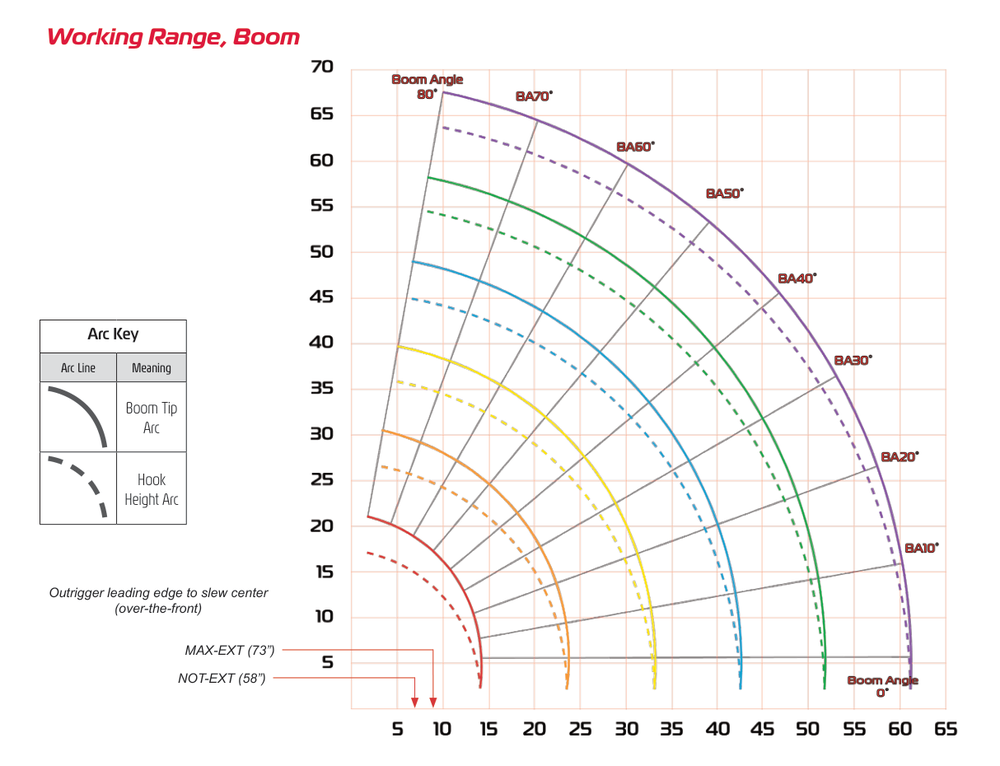

URW706 working range chart for boom tip arc and hook height arc from 0 to 80 degrees across boom stages 1 through 6

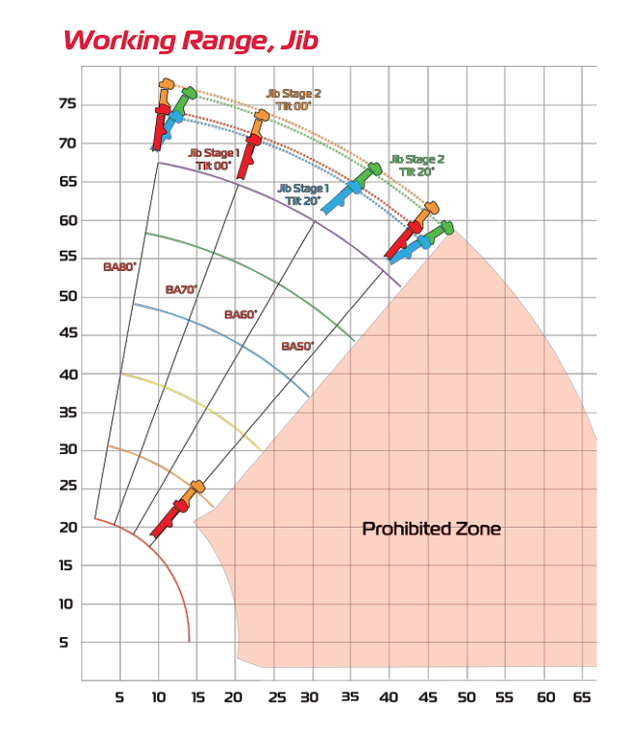

URW706 jib working range at tilt angles 0 and 20 degrees

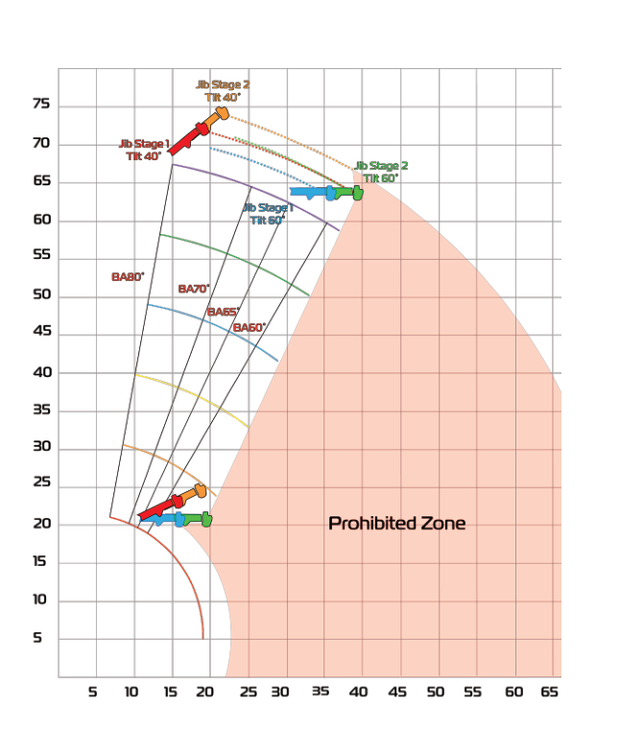

URW706 jib working range at tilt angles 40 and 60 degrees

URW706

Load Chart, Boom, 4-Part Hook Block

Boom Stage 1 rated capacities in pounds by working radius
STAGE 1	Deployment State	Working Radius (feet)
	Deployment State	9	10	11	13	14.1
	MAX-EXT	13,330	13,200	12,480	10,590	8,810
	HALF-EXT	13,330	13,200	12,480	10,890	8,810
	NOT-EXT	13,330	13,200	12,480	10,270	8,370

Boom Stage 2 rated capacities in pounds by working radius
STAGE 2	Deployment State	Working Radius (feet)
	Deployment State	6.5	10	11	13	16	20	23	23.6
	MAX-EXT	13,330	13,160	12,300	10,650	8,600	6,400	5,040	4,500
	HALF-EXT	13,330	13,160	12,300	10,650	8,600	5,200	3,840	3,520
	NOT-EXT	13,330	13,160	12,300	10,440	5,900	3,550	2,630	2,420

Boom Stage 3 rated capacities in pounds by working radius
STAGE 3	Deployment State	Working Radius (feet)
	Deployment State	9	13	16	20	23	26	30	33	33.1
	MAX-EXT	10,140	10,140	8,340	6,450	5,370	4,140	2,920	2,200	2,200
	HALF-EXT	10,140	10,140	8,340	5,480	3,950	3,010	2,100	1,650	1,650
	NOT-EXT	10,140	10,140	6,200	3,640	2,750	2,010	1,470	1,030	980

Boom Stage 4 rated capacities in pounds by working radius
STAGE 4	Deployment State	Working Radius (feet)
	Deployment State	16.5	20	23	26	30	33	36	39	42.3
	MAX-EXT	6,580	5,630	4,840	4,230	3,300	2,700	2,200	1,900	1,100
	HALF-EXT	6,580	5,580	4,170	3,240	2,430	1,950	1,550	1,340	990
	NOT-EXT	6,100	4,000	2,960	2,350	1,670	1,290	1,050	840	630

Boom Stage 5 rated capacities in pounds by working radius
STAGE 5	Deployment State	Working Radius (feet)
	Deployment State	20	26	30	33	36	39	43	46	49	51.8
	MAX-EXT	5,200	3,900	3,090	2,720	2,320	2,000	1,600	1,400	1,220	990
	HALF-EXT	5,200	3,470	2,520	2,160	1,770	1,450	1,180	990	770	650
	NOT-EXT	4,300	2,470	1,780	1,520	1,210	1,000	750	610	480	390

Boom Stage 6 rated capacities in pounds by working radius
STAGE 6	Deployment State	Working Radius (feet)
	Deployment State	26	33	39	46	52	59	61
	MAX-EXT	3,100	2,290	1,890	1,420	1,010	660	550
	HALF-EXT	3,100	2,280	1,560	1,090	790	550	440
	NOT-EXT	2,540	1,630	1,120	720	500	300	230

Capacities in pounds (lbs). Black values = MAX-EXT / HALF-EXT. Red values = NOT-EXT.

Load Chart, Jib — 1-Part Hook Block

Jib 1-part hook block rated capacities by boom angle and tilt angle
Tilt Angle	Boom Angle
Tilt Angle	80°	75°	70°	65°	60°	55°	50°	<50°
0°	1,805	1,805	1,585	1,365	1,145	325	705	Prohibited
20°	1,805	1,805	1,585	1,365	1,145	925	705	Prohibited
40°	1,365	1,365	1,145	925	Prohibited	Prohibited	Prohibited	Prohibited
60°	1,365	1,365	1,145	925	Prohibited	Prohibited	Prohibited	Prohibited

Load Chart, Jib — Searcher Hook

Searcher hook rated capacities by working radius and outrigger deployment
Deployment State	Working Radius (feet)
Deployment State	23	26	29	33	35	36	38	39	43	46	49	52	56	59	<59
MAX-EXT	1,760	1,760	1,760	1,760	1,650	1,430	1,170	1,040	680	550	460	370	260	220	Prohibited
HALF-EXT	1,760	1,760	1,570	1,190	1,010	950	790	710	460	310	220	Prohibited	Prohibited	Prohibited	Prohibited
NOT-EXT	1,740	1,370	970	530	400	350	240	220	Prohibited	Prohibited	Prohibited	Prohibited	Prohibited	Prohibited	Prohibited

Jib capacities in pounds (lbs). Shaded cells = prohibited zone.
