URW295 MAX+ (NEW) ships on new machines. This HTML sheet matches the MAX+ PDF: boom load chart (MAX+, MAX-EXT, NOT-EXT), jib charts, and MAX+ deployment angles. Download the MAX+ PDF. Always match the placard on your machine.
Back to URW295 MAX+ PDF (NEW) Download MAX+ PDF

URW295 MAX+

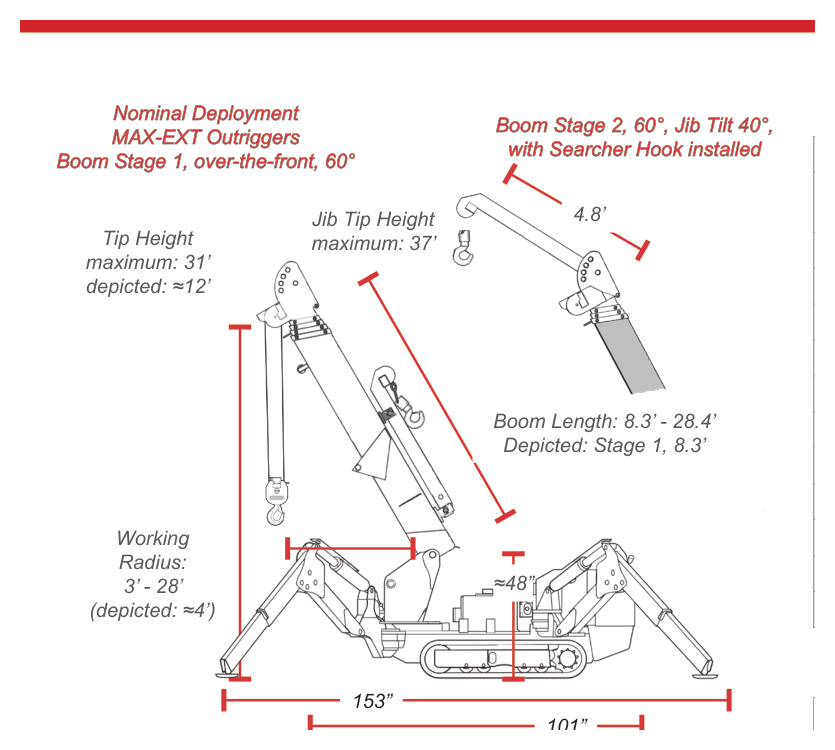

SPYDERCRANE URW295 nominal deployment with max-ext outriggers, boom stage 1 over-the-front at 60 degrees

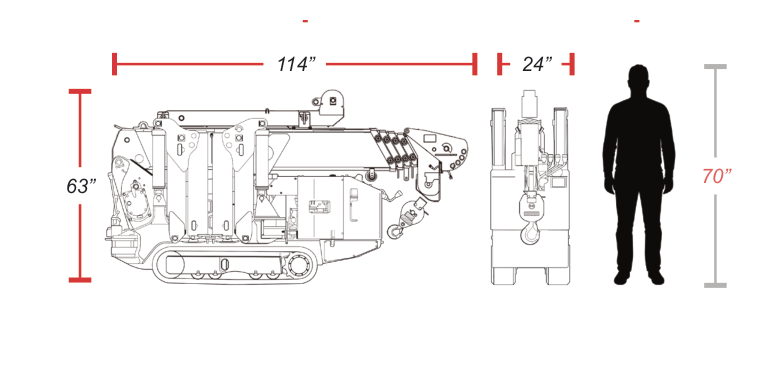

URW295 stowed transport dimensions: 114 inches long, 63 inches high, 24 inches wide

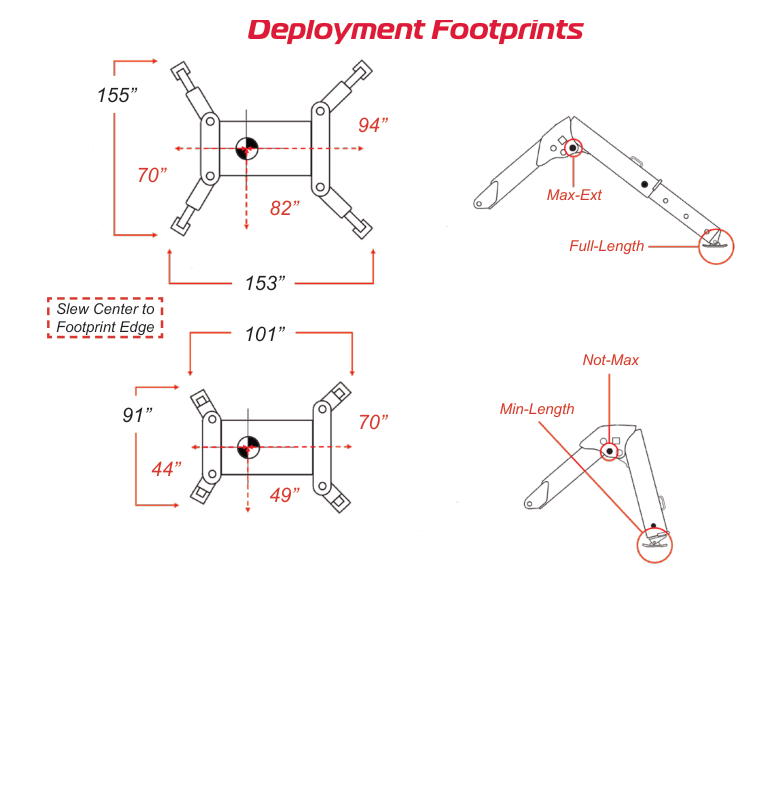

URW295 deployment footprints at max-ext and minimum outrigger settings

SPECIFICATIONS

SpecificationURW295
System Working Weight4,330 lbs (1,964 kg) (gas/propane powerplant)
Max Rated Capacity6,450 lbs (2,926 kg) 4-part / 1,630 lbs (739 kg) 1-part
Boom Length8.3′–28.4′ (2.53M – 8.65M)
Working Radius3′–27.6′ (.91M – 8.4M)
Maximum Tip Height31′ (9.45M) / 37′ (11.28M) max jib tip height
Wire Rope155′ (54M) of 5/16″ (8mm) 6x26 (WS) IWRC
Winch Speed66′ (20M) per minute (at 4th layer w/ 1-Part)
Boom TypeFive-section hexagonal, hydraulic
Telescope Speed20′ (6.12M) in 20 seconds
Angle Speed0°–78° in 11 seconds
Slew Speed1.5 rpm, continuous rotation
Max Travel Speed1.43 mph (2.3 km/h) (gasoline, WOT)
Travel Grade/Limits20° fore-aft, 5° side-side, 3° side-side (off road)

FEATURES

Integrated computer controller
On-board toolkit
Load weight gauge
Integrated hydraulic holding valves and self-braking motors
Wireless remote controller
Real-time stability monitoring
Progressive infinitely-variable controls
Quick-install jib system
Selectable-length and -geometry outriggers
Two-block and minimum-wire rope detection and prevention
Multiple transport options
Rough terrain travel capability

Remote Controller

  • 458–459 MHz
  • ≈330′ range
  • Designed for one-hand operation
  • Powered by four AAA batteries (10 hours of use)
  • Progressive-control action trigger

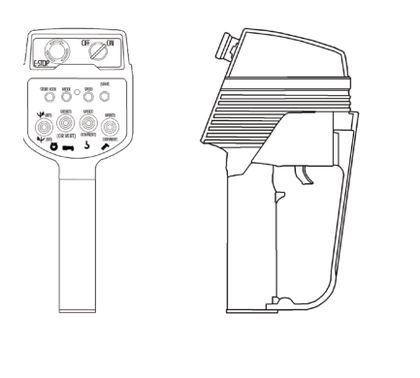

URW295 wireless remote controller

Transport Options

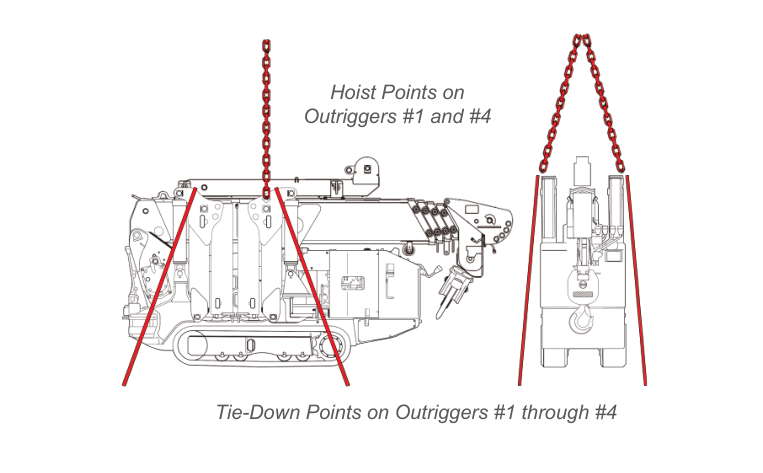

URW295 transport configuration showing hoist points on outriggers 1 and 4 and tie-down points on outriggers 1 through 4

URW295 MAX+

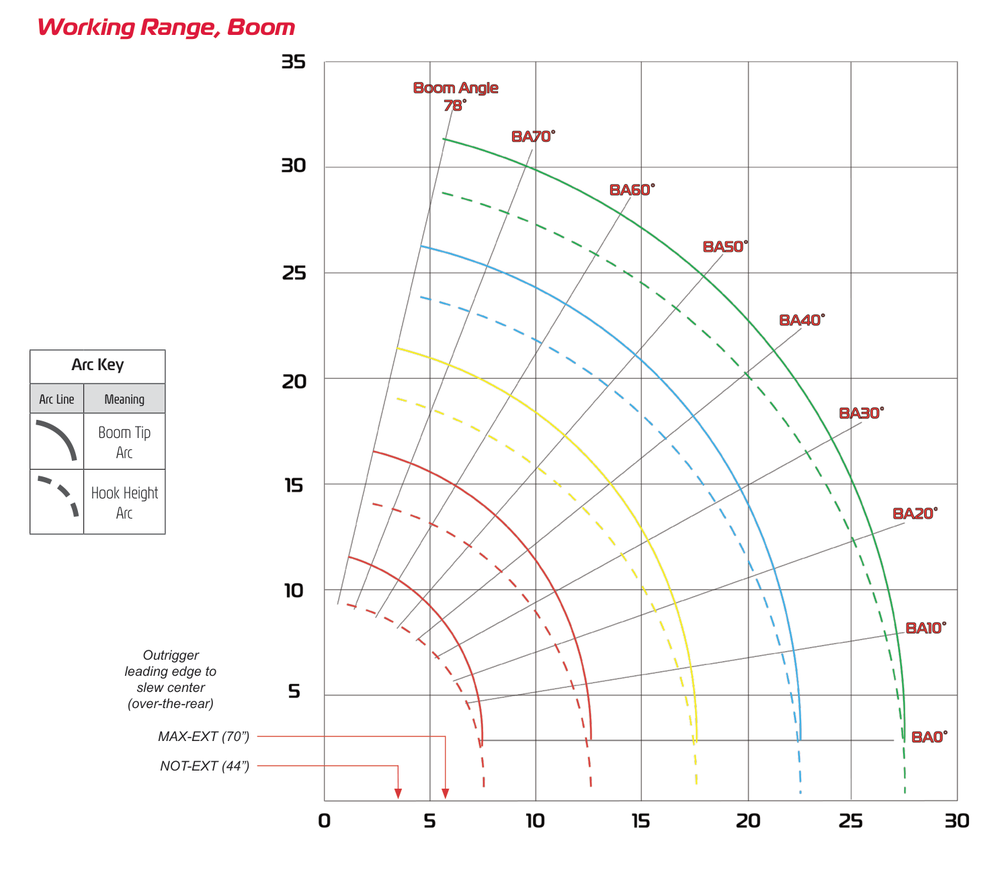

URW295 working range chart for boom tip arc and hook height arc from 0 to 78 degrees

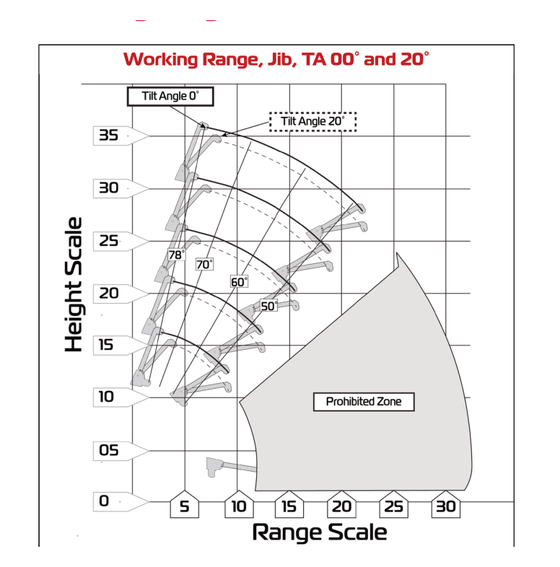

URW295 jib working range at tilt angles 0 and 20 degrees

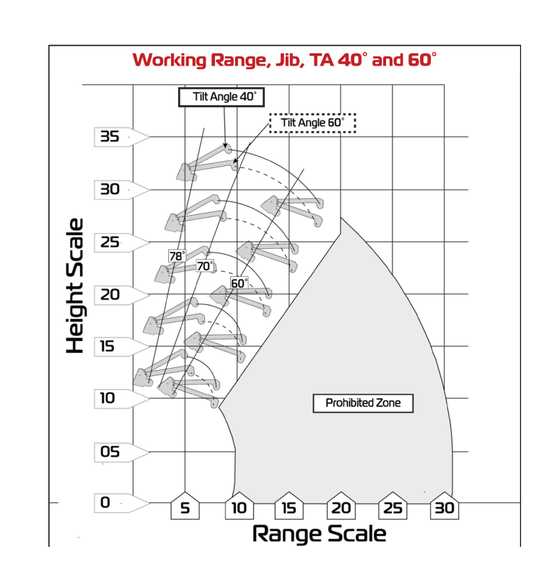

URW295 jib working range at tilt angles 40 and 60 degrees

URW295 MAX+

Load Chart, Boom, 4-Part Hook Block (includes MAX+)

STAGE 1–2 Deployment State Working Radius (feet)
3.0 4.5 5.0 6.0 7.0 8.0 10.0 11.0 12.58
MAX+ 6,4506,4505,9505,1704,4503,9003,1602,8202,330
MAX-EXT 6,4506,4505,9505,1704,4503,9003,1602,8202,330
NOT-EXT 4,4504,4504,4503,1502,2501,6001,100950600
STAGE 3 Deployment State Working Radius (feet)
4.5 6.0 7.0 8.0 9.5 10.0 11.0 12.0 14.0 15.0 17.62
MAX+ 4,8504,3203,8703,5203,0502,8502,6202,4002,0701,9201,560
MAX-EXT 4,8504,3203,8703,5203,0502,8402,6002,3701,9001,6601,120
NOT-EXT 1,8501,8501,8501,5501,2501,1501,000850600550300
STAGE 4 Deployment State Working Radius (feet)
8.0 10.0 11.0 12.5 13.0 15.0 16.0 17.0 18.0 20.0 22.61
MAX+ 2,5702,2202,0701,9501,8101,4801,3901,3201,2501,1501,010
MAX-EXT 2,5702,2202,0701,9501,8101,4601,3101,1801,060900700
NOT-EXT 1,0001,0001,000800750600510450370280200
STAGE 5 Deployment State Working Radius (feet)
11.0 12.5 13.5 15.0 16.0 18.0 19.0 21.0 23.0 25.0 27.59
MAX+ 1,2801,2801,2801,050940830810750700650610
MAX-EXT 1,2801,2801,2801,050940810760650570490390
NOT-EXT 850850700600530420380300220180130

Capacities in pounds (lbs). MAX+ = Max+ deployment state (new machines). Black = MAX-EXT. Red = NOT-EXT. Always work from the placard on the machine.

Selectable-Geometry Outriggers

Your SPYDERCRANE is equipped with selectable-geometry outriggers, allowing you to deploy it into limited-access and restricted-geometry environments. The safe working area adjusts to the outrigger geometry you select.

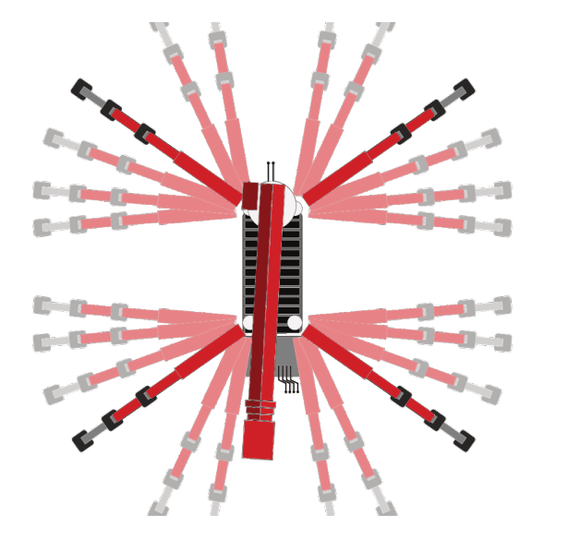

URW295 selectable-geometry outrigger position diagram

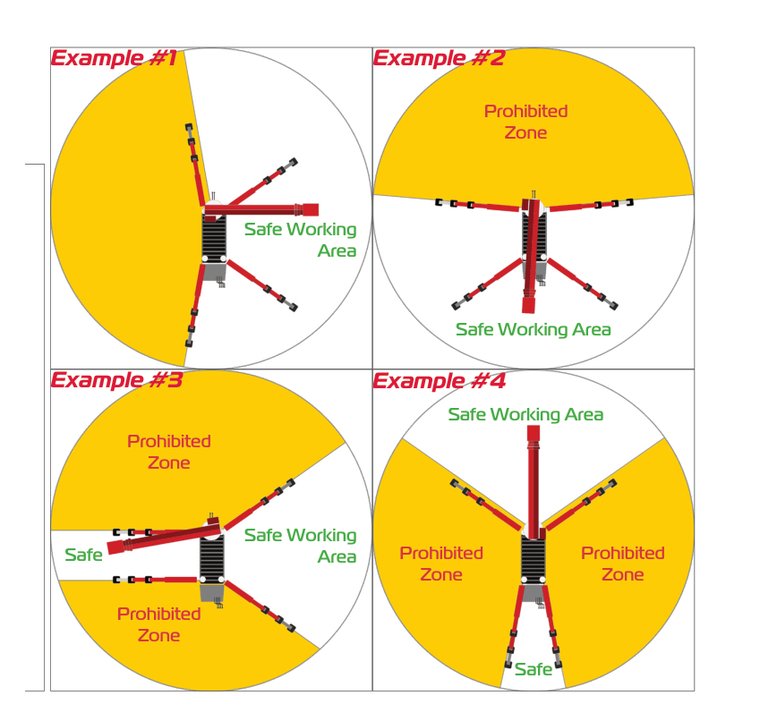

URW295 outrigger deployment examples 1 through 4 showing safe working areas and prohibited zones

MAX+ Deployment State

Increase your SPYDERCRANE’s rated load capacity along a single-axis by using specific outrigger deployment angles at MAX-EXT.

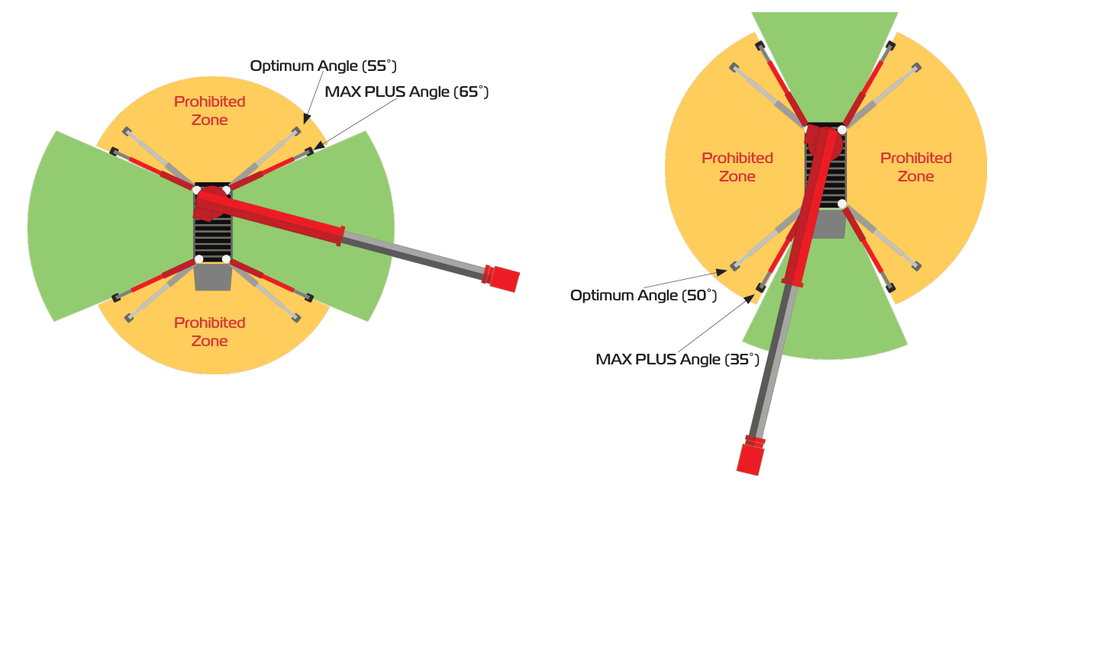

URW295 MAX+ deployment state diagrams: over-the-side at 65 degrees and over-the-front or rear at 35 degrees

URW295 MAX+

Load Charts, Jib — Jib and Searcher Hook

Working Radius MAX-EXT NOT-MAX Working Radius MAX-EXT NOT-MAX
12.5 1,560 560 12.5 1,120 560
13.0 1,560 460 13.0 1,010 460
15.0 1,060 330 15.0 870 330
16.0 940 280 16.0 740 280
18.0 740 190 18.0 670 190
20.0 570 120 20.0 570 120
21.0 520 110 21.0 210 110
23.0 410 Prohibited Zone 23.0 410 Prohibited Zone
26.0 310 Prohibited Zone 26.0 310 Prohibited Zone
27.5 240 Prohibited Zone 30 220 Prohibited Zone
32.5 130 Prohibited Zone

Load Charts, Jib — Jib and 1-Part Hook Block

Boom Stage 1–4 Boom Angle Jib Tilt Angle
0° 20° 40° 60°
78° 1,5801,5801,5801,580
75° 1,5801,5801,5801,580
70° 1,5801,5801,5801,580
65° 1,1401,1401,1401,140
60° 810810810810
55° 590590
50° 480480
40° Prohibited Zone
30°
20°
10°
0°
Boom Stage 5 Boom Angle Jib Tilt Angle
0° 20° 40° 60°
78° 920920920920
75° 920920920920
70° 920920920920
65° 590590590590
60° 480480480480
55° 370370
50° 260260
40° Prohibited Zone
30°
20°
10°
0°

Jib capacities in pounds (lbs). Shaded cells = prohibited zone. Always work from the placard on the machine.
