New MAX+ available on new URW295 machines. Up to 56% more capacity at radius.
See the MAX+ load chart →Max 6,450 lbs · Boom 28.4 ft · Fits through a single door
The SPYDERCRANE URW295 is the flagship model of the 200 Series, our most versatile mini crawler crane and a top choice for glazing and material setting. With 6,450 lbs max capacity, a 28.4 ft boom, and a 24-inch travel width, the URW295 fits through a single door and sets up in hallways, balconies, and other tight spaces with variable-geometry outriggers.
As a standard feature, the URW295 includes a wireless radio remote control, freeing the operator from being tethered to the crane. Couple this crane with a glass manipulator and it becomes one of the most powerful glazing tools on the market.
MAX+ ships on new URW295 machines. Explore the NEW MAX+ for capacity gains and deployment details.
| Specification | URW295 |
|---|---|
| Max Capacity | 6,450 lbs @ 4.6 ft |
| Boom Length | 28.4 ft |
| Approximate Tip Height | 31 ft |
| Wire Rope on Drum | ~150 ft |
| Travel Dimensions (W × H × L) | 24" × 56" × 108" |
| Footprint (Max) | 12'6" × 12'6" |
| Footprint (Min) | 8'6" × 7'6" |
| Weight of Crane | ~4,300 lbs |
MAX+ is available on new URW295 machines. Always work from the rated load chart placard affixed to your machine. Specifications subject to change. Download the official spec sheet for the most current data.
| Power Configuration | URW295 |
|---|---|
| Gas / Propane | Standard |
| Diesel | Optional |
| Battery/Electric with Gas / Diesel (Dual Power) | Optional |
| 110V Battery/Electric Only | Optional |
While available in traditional gas, propane, and diesel power options, SPYDERCRANE® mini cranes also offer a zero-emission Battery/Electric option. These models run on battery power and plug into a standard 110 Volt wall outlet.
| URW295 | |
|---|---|
| Single Part Line | Standard |
| 2-Part Line | Optional |
| 4-Part Line | Standard |
| Jib with Searcher Hook | Standard |
| Variable Geometry Outriggers | Standard |
| Patented Overturn Protection | Standard |
| Automatic Throttle Advancement | Standard |
| On-board Self Diagnostic Computer System | Standard |
| Full Function Wireless Remote | Standard |
| Automatic Hook Stow | Standard |
Click any feature below to watch a short video and learn how it works.
| URW295 | |
|---|---|
| Attachable Work Platform | Optional |
| Non-marking Tracks | Optional |
| SPYDERWEB Glass Manipulator | Optional |
| Woods Pwr Grip Hanging Cups | Optional |
| Auxiliary Winch | Optional (400' wire rope) |
| Exhaust Scrubber / Catalytic Converter | Optional |
| Propane Tank | Optional |
| Arctic Kit / 12V & 110V Combo | Optional |
| Crane Lube Kit (Lube-a-Boom) | Optional |
| Fire Extinguisher | Optional |
| Spare Parts Kit (2-Year Supply) | Optional |
| Track Mats 3' × 6' (Set of 3) | Optional |
| Outrigger Pads | Optional |
| Trailer & Accessory Kit | Optional |
| Rigging | Optional |
| Spare Key (Pair) | Optional |
| Steel Pallet w/Fork Pockets | Optional |
| Strobe Light | Optional |
| Weatherproof Cover | Optional |
Click any featured accessory below to learn more.
.jpg)

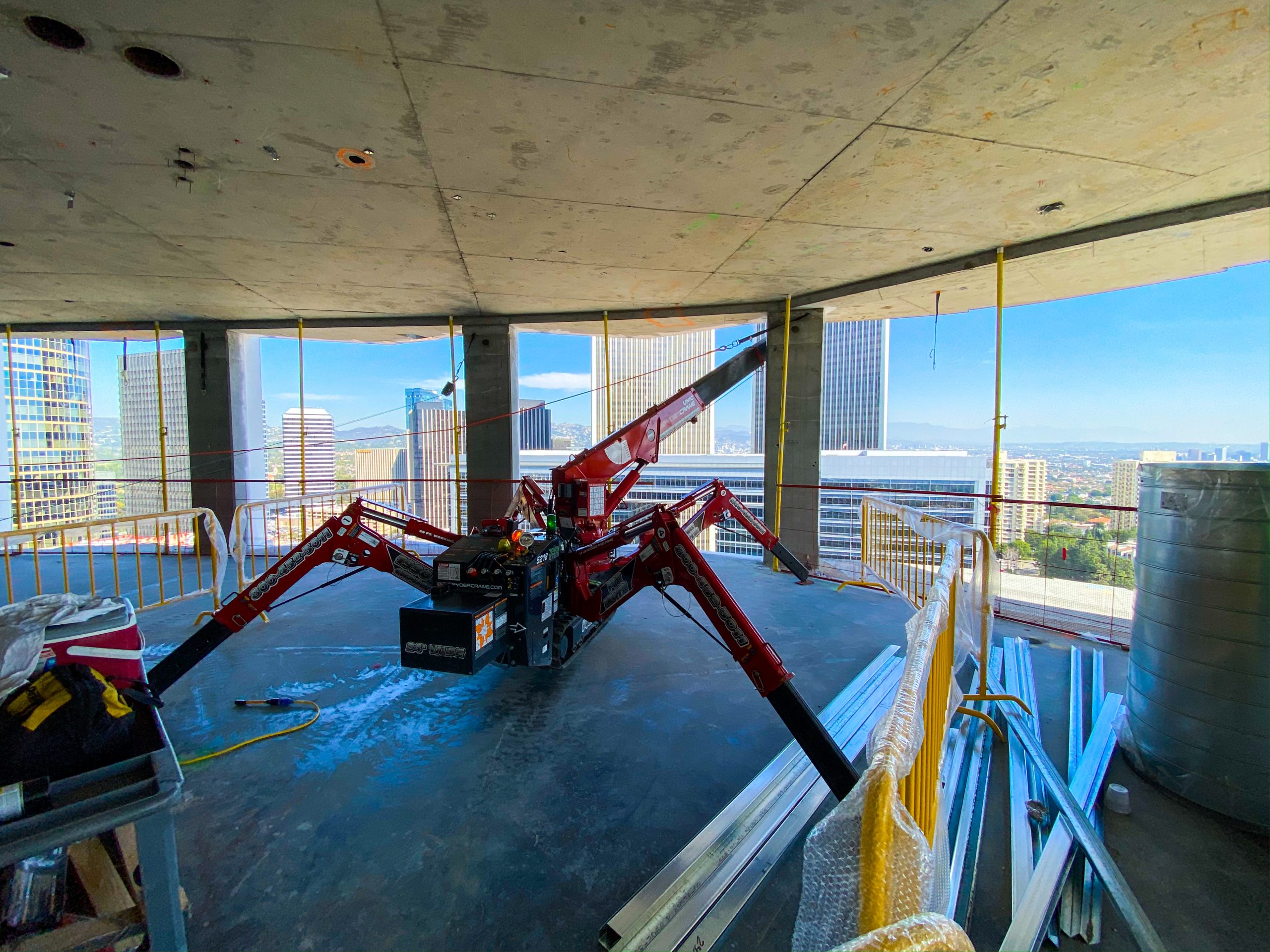

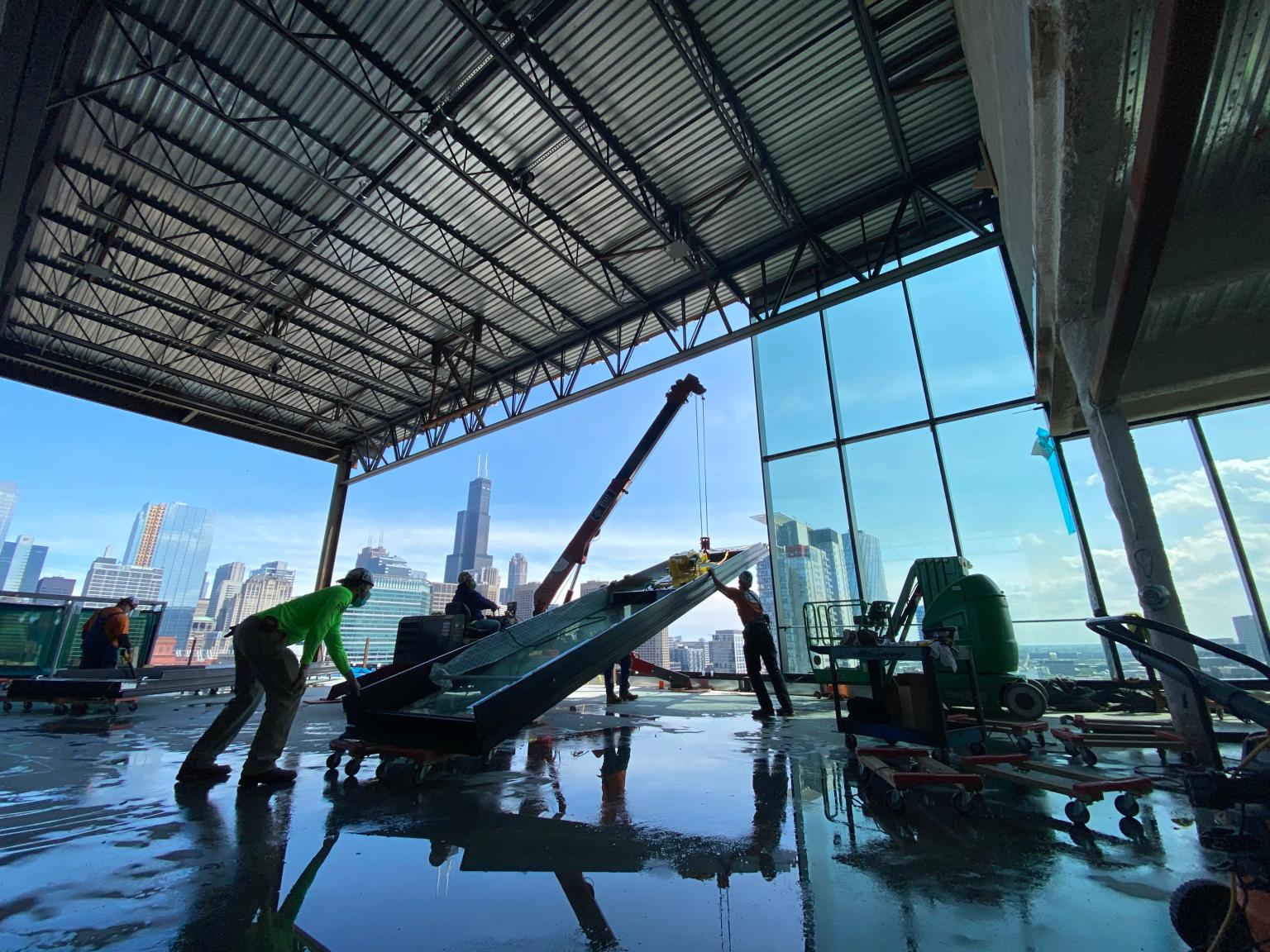

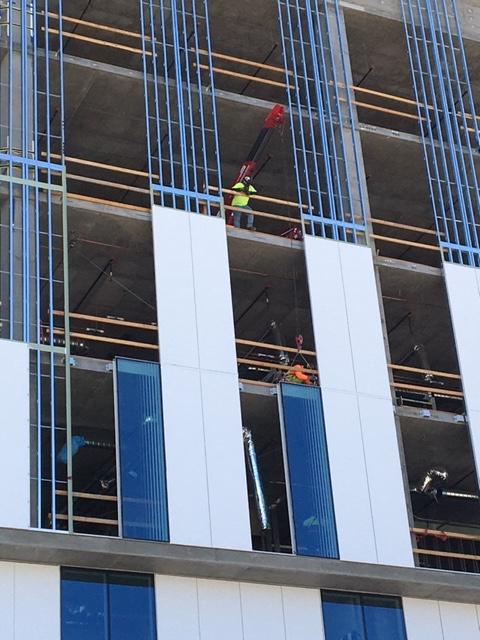

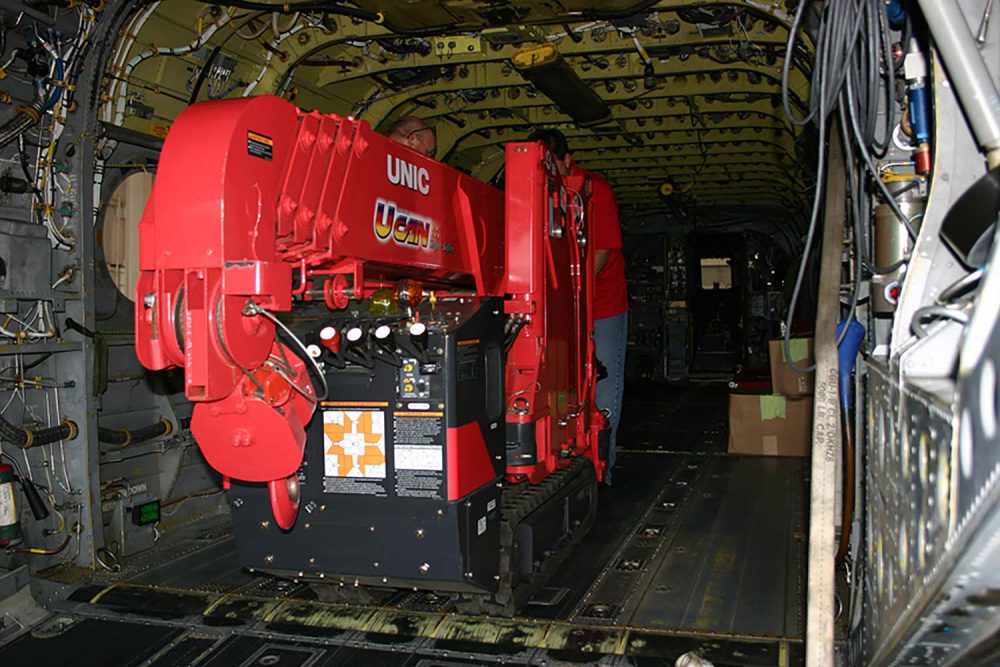

Photos from real SPYDERCRANE jobsites. Click any photo to view full size.
On new URW295 machines, MAX+ raises rated capacity at radius. Numbers below are examples from the URW295 MAX+ load chart (4-part line, MAX-EXT). Gross capacity; deduct hook block and rigging. Full Max+ story: Explore the NEW MAX+.
| Boom configuration | Radius | URW295 | URW295 MAX+ | Gain |
|---|---|---|---|---|
| Boom Stage 3 | 17′ 7″ | 1,120 lbs | 1,560 lbs | +440 lbs · +39% |
| Boom Stage 4 | 22′ 7″ | 700 lbs | 1,010 lbs | +310 lbs · +44% |
| Boom Stage 5 | 27′ 7″ | 390 lbs | 610 lbs | +220 lbs · +56% |
Always work from the load chart placard on the machine. Download the URW295 MAX+ Spec Sheet (NEW).
Up to 56% more capacity at radius
