Max 8,920 lbs · Boom 59′ 2″ · Fits through a double door
The SPYDERCRANE URW547 is the higher-capacity model in the 500 Series, built for steel erection and heavy lifting in confined spaces. With 8,920 lbs max capacity at 8.0 ft, a 59′ 2″ boom, and a 68 ft tip height, it delivers high capacity in a compact footprint.
At just 4′ 6″ wide in travel mode, the URW547 can pass through a standard double doorway. Diesel is standard, with optional electric and dual-power configurations. Both 500 Series models include an electronic display load moment indicator, on-board self diagnostic computer system, and full function wireless remote.
| Specification | URW547 |
|---|---|
| Max Capacity | 8,920 lbs @ 8.0′ |
| Boom Length | 59′ 2″ |
| Approximate Tip Height | 68 ft |
| Wire Rope on Drum | ~300 ft |
| Travel Dimensions (W × H × L) | 54″ × 78″ × 195″ |
| Approximate Footprint (Max) | 19′ 6″ × 19′ 6″ |
| Approximate Footprint (Min) | 15′ 6″ × 15′ 6″ |
| Weight of Crane | ~11,000 lbs |
Specifications subject to change. Download the official spec sheet for the most current data.
| Power Configuration | URW547 |
|---|---|
| Diesel | Standard |
| Electric with Diesel | Optional |
| 110V Battery Power / Diesel | Optional |
Diesel is the standard power configuration on the URW547. SPYDERCRANE® mini cranes also offer optional zero-emission Electric and 110 Volt battery configurations.
| URW547 | |
|---|---|
| Single Part Line | Optional |
| 4-Part Line | Standard |
| Load Moment Indicator with Electronic Display | Standard |
| Automatic Throttle Advancement | Standard |
| On-board Self Diagnostic Computer System | Standard |
| Full Function Wireless Remote | Standard |
| Automatic Hook Store | Standard |
Click any feature below to watch a short video and learn how it works.
| URW547 | |
|---|---|
| Attachable Work Platform | Optional |
| Non-marking Tracks | Optional |
| SPYDERWEB Glass Manipulator | Optional |
| Woods Pwr Grip Hanging Cups | Optional |
| Exhaust Scrubber / Catalytic Converter | Optional |
| Arctic Kit / 12V & 110V Combo | Optional |
| Crane Lube Kit (Lube-a-Boom) | Optional |
| Fire Extinguisher | Optional |
| Spare Parts Kit (2-Year Supply) | Optional |
| Track Mats 3' × 6' (Set of 3) | Optional |
| Outrigger Pads | Optional |
| Trailer & Accessory Kit | Optional |
| Rigging | Optional |
| Spare Key (Pair) | Optional |
| Steel Pallet w/Fork Pockets | Optional |
| Strobe Light | Optional |
| Weatherproof Cover | Optional |
Click any featured accessory below to learn more.

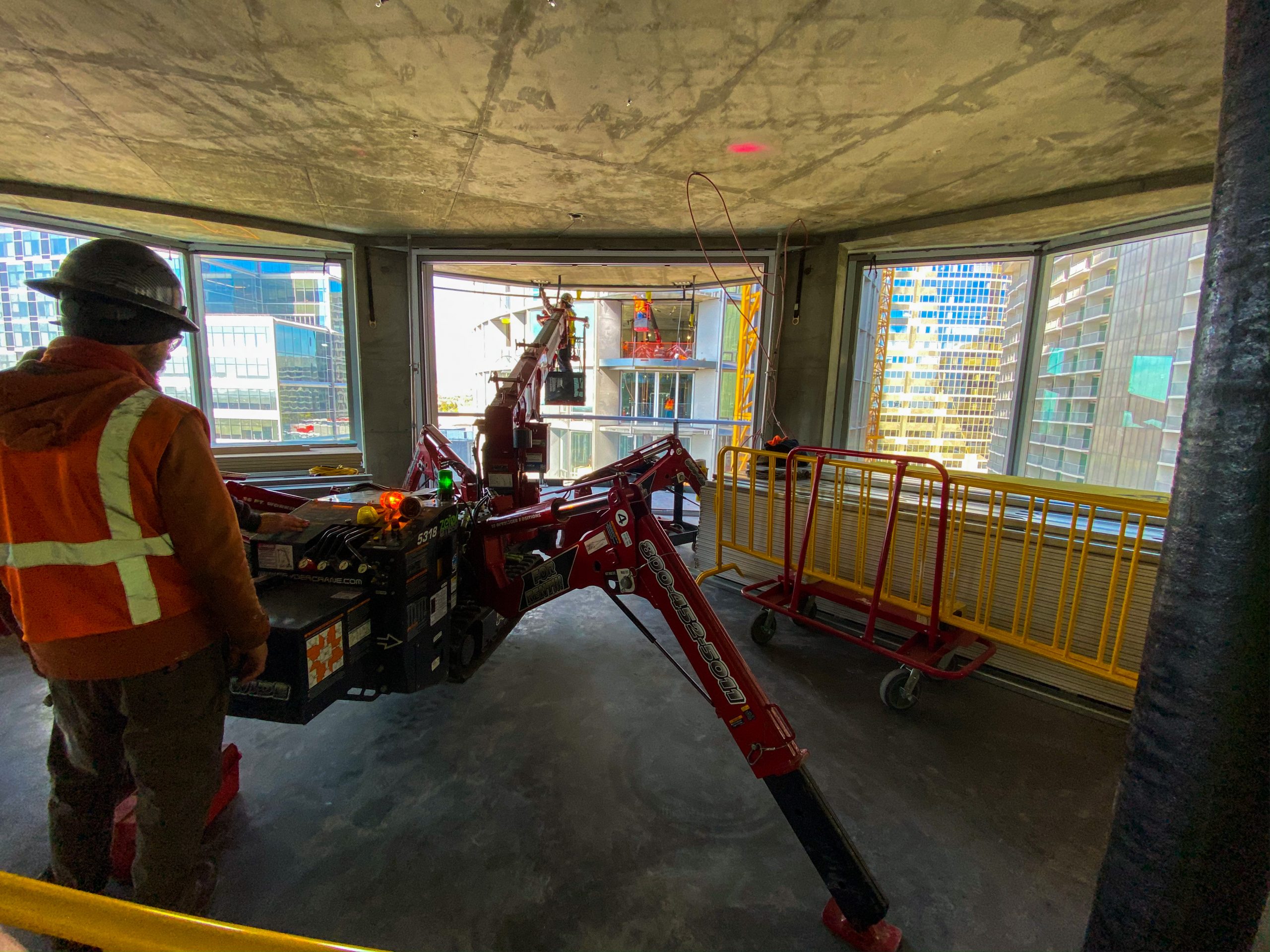

Photos from real SPYDERCRANE jobsites. Click any photo to view full size.
SPYDERCRANE® operator training with hands-on instruction from dedicated trainers.
