New MAX+ on the 200 Series. Up to 56% more capacity at radius. Same footprint. Same setup.
See the capacity gains →Up to 56% more capacity at radius · Standard on all new 200 Series machines
MAX+ is a deployment state on new 200 Series machines. At full outrigger extension, the legs set to specific angles that put more rated capacity along one working axis. Capacity goes up where you are lifting. Same footprint. Same setup time. More capacity where it means the most.
The most significant engineering development on the 200 Series is MAX+. On the URW295, it is the same platform as before: the same physical size and the same outrigger footprint, with up to 56% more lifting capacity in key areas of the load chart. For a contractor, that means more capability with no change to the space required to set up, no change to transport, and no change to how the machine moves through a building.
Contractors consistently ask for more capacity or reach. MAX+ answers that by improving what an existing footprint can do. It is also available on new URW205 and URW095 machines.
MAX+ does not change short-radius capacity. Run the boom out, and the chart opens up. Numbers below are examples from the URW295 MAX+ load chart (4-part line, MAX-EXT).
| Boom configuration | Radius | URW295 | URW295 MAX+ | Gain |
|---|---|---|---|---|
| Boom Stage 3 | 17′ 7″ | 1,120 lbs | 1,560 lbs | +440 lbs · +39% |
| Boom Stage 4 | 22′ 7″ | 700 lbs | 1,010 lbs | +310 lbs · +44% |
| Boom Stage 5 | 27′ 7″ | 390 lbs | 610 lbs | +220 lbs · +56% |
Gross capacity; deduct hook block and rigging. Always work from the load chart placard on the machine.
Up to 56% more capacity at radius
Standard on all New 200 Series Machines

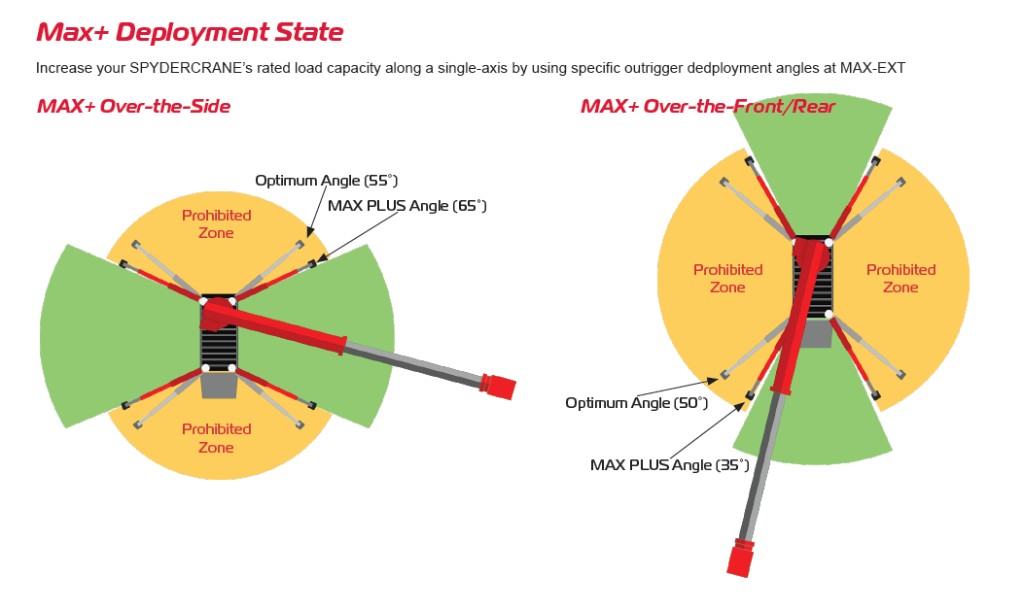

Over the side, outriggers set to 65°. Over the front or rear, they set to 35°. Green is the working axis. Yellow is prohibited.
MAX+ ships on new URW295, URW205, and URW095 machines. Pick the model for your job, then work from the matching MAX+ chart.
Tell us the radius, the weight, and what’s in the way. We’ll confirm if MAX+ makes the lift.
We respond within one business day.
