Max 5,800 lbs · Boom 49′ 10″ · Fits through a double door
The SPYDERCRANE URW506 is the lighter-rated model in the 500 Series, built for steel erection and confined-space construction with a 5,800 lbs capacity at 12.0 ft and a 49′ 10″ boom.
At 4′ 6″ wide in travel mode, the URW506 can pass through a standard double doorway. Diesel is standard, with optional electric and dual-power configurations, plus load moment indicator, self diagnostic computer, and full function wireless remote.
| Specification | URW506 |
|---|---|
| Max Capacity | 5,800 lbs @ 12.0′ |
| Boom Length | 49′ 10″ |
| Approximate Tip Height | 54 ft |
| Wire Rope on Drum | ~300 ft |
| Travel Dimensions (W × H × L) | 54″ × 78″ × 195″ |
| Approximate Footprint (Max) | 19′ 6″ × 19′ 6″ |
| Approximate Footprint (Min) | 15′ 6″ × 15′ 6″ |
| Weight of Crane | ~11,000 lbs |
Specifications subject to change. Download the official spec sheet for the most current data.
| Power Configuration | URW506 |
|---|---|
| Diesel | Standard |
| Electric with Diesel | Optional |
| 110V Battery Power / Diesel | Optional |
Diesel is the standard power configuration on the URW506. SPYDERCRANE® mini cranes also offer optional zero-emission Electric and 110 Volt battery configurations.
| URW506 | |
|---|---|
| Single Part Line | Optional |
| 4-Part Line | Standard |
| Load Moment Indicator with Electronic Display | Standard |
| Automatic Throttle Advancement | Standard |
| On-board Self Diagnostic Computer System | Standard |
| Full Function Wireless Remote | Standard |
| Automatic Hook Store | Standard |
Click any feature below to watch a short video and learn how it works.
| URW506 | |
|---|---|
| Attachable Work Platform | Optional |
| Non-marking Tracks | Optional |
| SPYDERWEB Glass Manipulator | Optional |
| Exhaust Scrubber / Catalytic Converter | Optional |
| Fire Extinguisher | Optional |
| Spare Parts Kit (2-Year Supply) | Optional |
| Track Mats 3' × 6' (Set of 3) | Optional |
| Outrigger Pads | Optional |
| Rigging | Optional |
| Weatherproof Cover | Optional |
Click any featured accessory below to learn more.

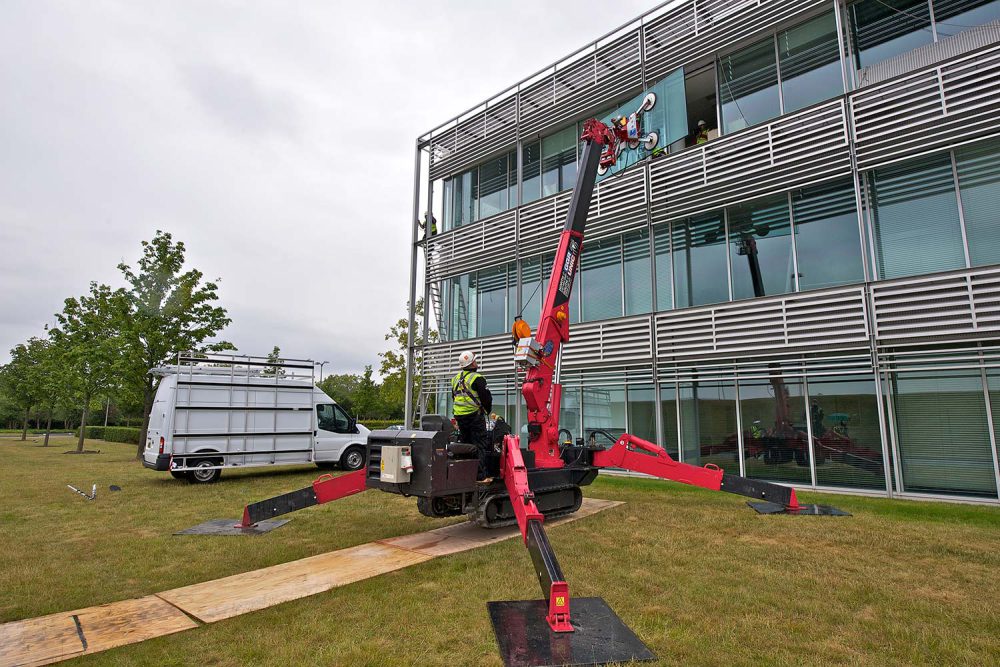

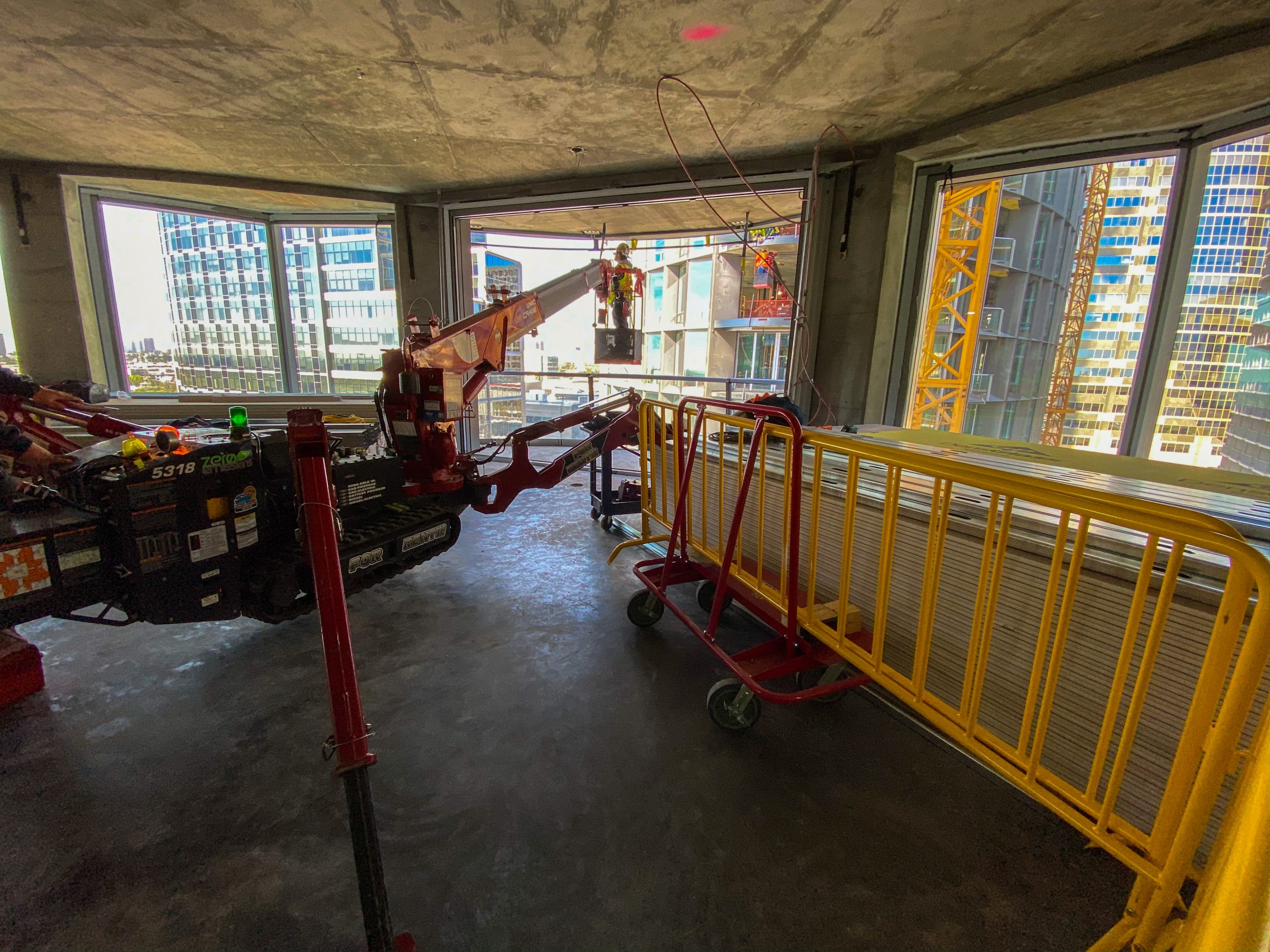

Photos from real SPYDERCRANE jobsites. Click any photo to view full size.
